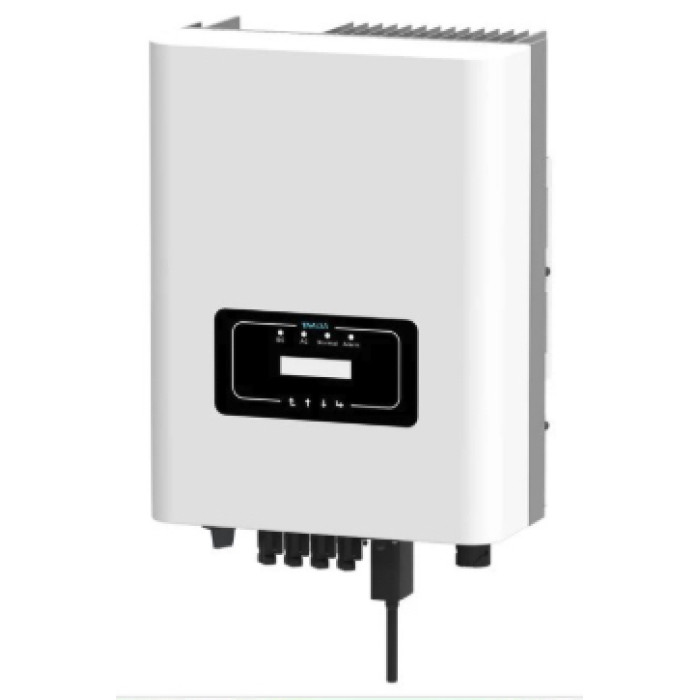

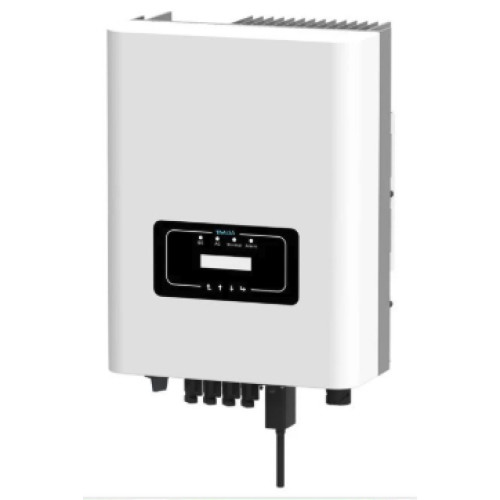

[SUN-5K-G] TMDA 3Phase 220v/5kw Wifi/ DC Switch/LCD

3Phase 220v/5kw Wifi/ DC Switch/LCD
Max. DC Input Power (kW) : 6.5
Max. DC Input Voltage (V)  : 550
Rated Output Power (kW)  : 5
Active Power (kW) : 5.5
Operating Phase : Single phase
Dimension : 330W×323H×19
MPPT Operating Range (V) 70-500
Max. DC Input Current (A) 13+13
Max. DC Input Current (A) 19.5+19.5
Number of MPPT / Strings per MPPT 2/1
Output Side
Rated Output Power (kW) 5
Max. Active Power (kW) 5.5
Nominal Output Voltage / Range (V)  L/N/PE 220V/187V-242V, 230V/ 195.5V-253V (Optional)
Rated Grid Frequency (Hz) 50 / 60 (Optional)
Operating Phase Single phase
Rated AC Grid Output Current (A) 21
Max. AC Output Current (A) 23.9
Output Power Factor 0.8 leading to 0.8 lagging
Grid Current THD <3%
DC Injection Current (mA) <0.5%
Grid Frequency Range Grid Frequency Range 47~52 or 57~62 (Optional
