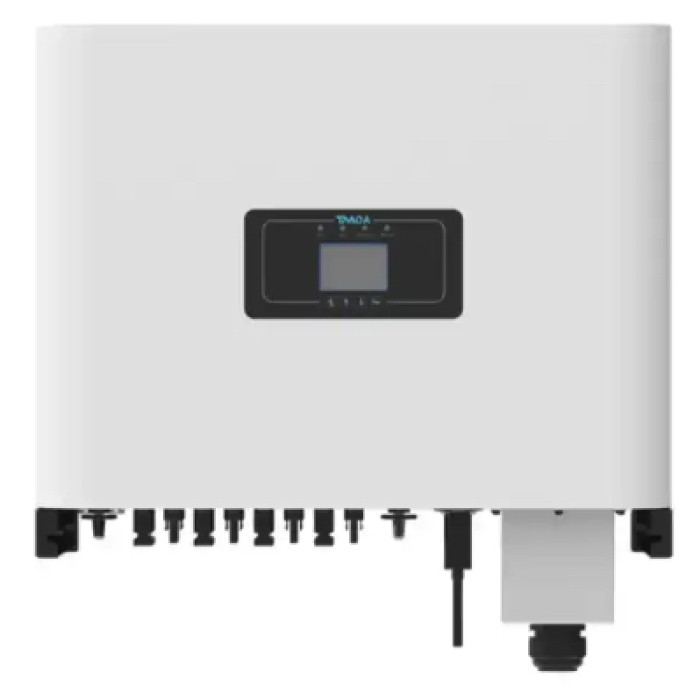

[SUN-50K-G03] TMDA 3Phase 380v/50kw Wifi/ DC Switch/LCD

3Phase 380v/50kw Wifi/ DC Switch/LCD
Max. DC Input Power (kW) 65
Max. DC Input Voltage (V) 1000
Start-up DC Input Voltage (V) 250
MPPT Operating Range (V) 200~850
Max. DC Input Current (A) 40+40+40+40
Number of MPPT / Strings per MPPT 4/3
Output Side
Rated Output Power (kW) 50
Max. Active Power (kW) 55
Rated AC Grid Voltage (V) 220 / 380, 230 / 400
AC Grid Voltage Range (V) 277Vac~460Vac (this may vary with grid standards)
Rated Grid Frequency (Hz) 50 / 60 (Optional)
Operating Phase Three phase
Rated AC Grid Output Current (A) 72.4
Max. AC Output Current (A) 79.7
Output Power Factor 0.8 leading to 0.8 lagging
Grid Current THD <3%
DC Injection Current (mA) <0.5%
Grid Frequency Range 47~52 or 57~62 (Optional)
Efficiency
Max Eyciency 98.7%
Euro Eyciency 98%
MPPT Eyciency >99%
Protection
DC Reverse-Polarity Protection Yes
AC Short Circuit Protection Yes
AC Output Overcurrent Protection Yes
Output Overvoltage Protection Yes
Insulation Resistance Protection Yes
Ground Fault Monitoring Yes
Anti-islanding Protection Yes
Temperature Protection Yes
Integrated DC Switch Yes
Remote software upload Yes
Remote change of operating parameters Yes
Surge protection DC Type II / AC Type II
General Data
Size 647.5W×537H×303.5D
Weight (kg) 44.5
Topology Transformerless
Internal Consumption <1W (Night)
Running Temperature -25~65℃
Ingress Protection IP65
Noise Emission (Typical) <45 dB
Cooling Concept Smart cooling
Max. Operating Altitude Without Derating 2000m
Designed Lifetime >20 years
Grid Connection Standard EN50549, IEC61727, VDE 0126-1-1, IEC62109-1-2
Operating Surroundings Humidity 0-100%
Safety EMC / Standard IEC62109-1/-2, EN61000-6-1, EN61000-6-3
Features
DC Connection MC-4 mateable
AC Connection IP65 rated plug
Display LCD 240 × 160
Interface RS485/RS232/Wifi/LAN
