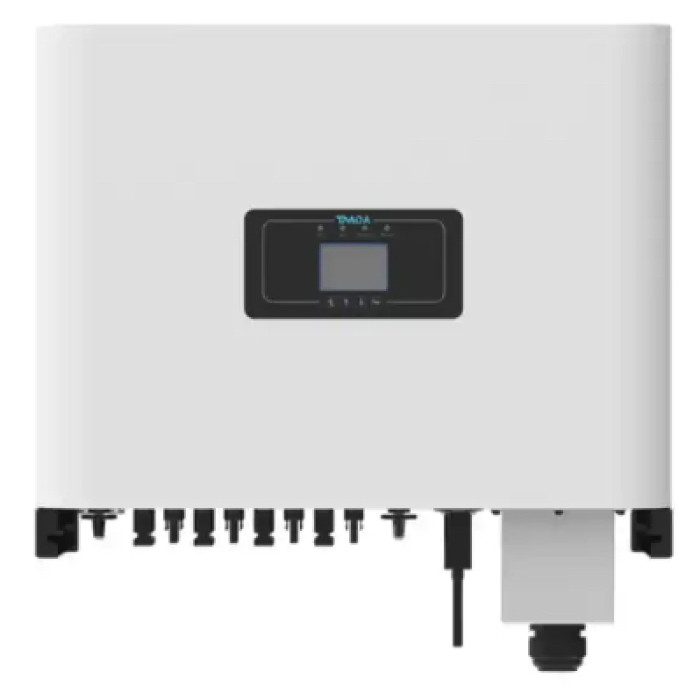

[SUN-40K-G04] TMDA 3Phase 380v/40kw Wifi/ DC Switch/LCD
![[SUN-40K-G04] TMDA 3Phase 380v/40kw Wifi/ DC Switch/LCD](/media/com_eshop/products/resized/SUN-40K-G04-TMDA-700x700.jpg "[SUN-40K-G04] TMDA 3Phase 380v/40kw Wifi/ DC Switch/LCD")
MANUFACTURER:
TMDA
P/N :
SUN-40K-G04
SUN-40K-G04
Max. DC Input Power (kW) : 65
Max. DC Input Voltage (V) : 1000
Rated Output Power (kW) : 50
Active Power (kW) : 55
Operating Phase : Three phase
Dimension : 647.5W×537H×303.5D
TMDA 10Y:
การรับประกันสินค้า 10 ปี
3Phase 380v/40kw Wifi/ DC Switch/LCD
Max. DC Input Power (kW) : 65
Max. DC Input Voltage (V) : 1000
Start-up DC Input Voltage (V) 250
MPPT Operating Range (V) 200∼850
Max. DC Input Current (A) 40+40+40+40
Max. Short Circuit Current (A) 60+60+60+60
Number of MPPT / Strings per MPPT 4/3
Output Side
Rated Output Power (kW) 50
Max. Active Power (kW) 55
Nominal Output Voltage / Range (V) 3L/N/PE 380V/323V-418V, 400V/340V-440V
Rated Grid Frequency (Hz) 50 / 60 (Optional)
Operating Phase Three phase
Rated AC Grid Output Current (A) 72.4
Max. AC Output Current (A) 79.7
Output Power Factor 0.8 leading to 0.8 lagging
Grid Current THD <3%
DC Injection Current (mA) <0.5%
Grid Frequency Range 47~52 or 57~62 (Optional)
