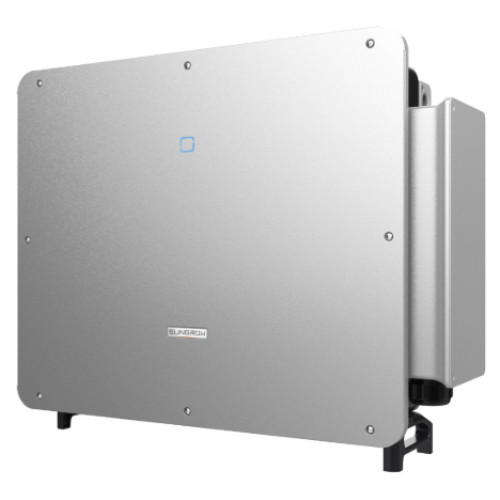

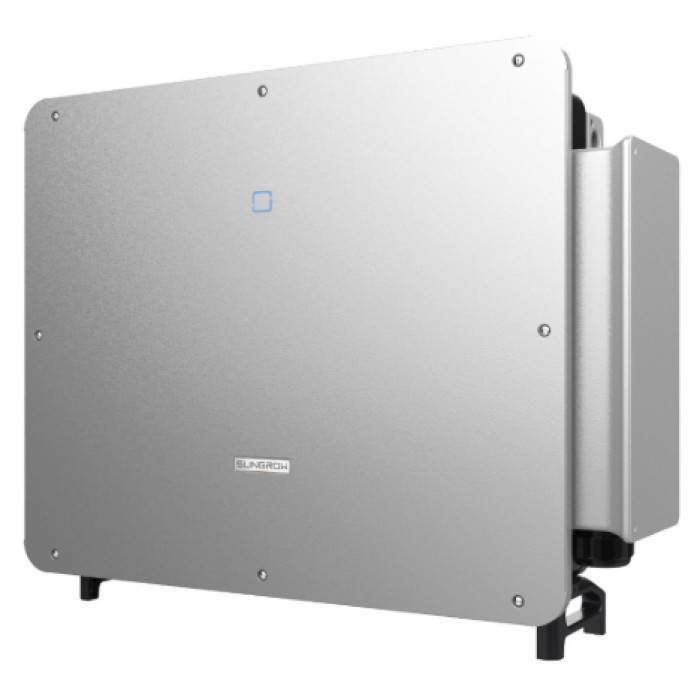

[SG150CX] Sungrow Inverter 210 kWp Max. PV input voltage* 1100 V Max. PV input current 336 A 3 Phase

210 kWp Max. PV input voltage* 1100 V Max. PV input current 336 A 3 Phase

Recommended max. PV input power 210 kWp
Max. PV input voltage 1100 V
Min. PV input voltage / Startup input voltage 180V / 200V

Rated PV input voltage 600 V ( 380 V / 400 V / 415 V ); 720 V ( 480 V )

MPPT voltage range ** 180 V – 1000 V

No. of independent MPP inputs 7

No. of PV strings per MPPT 3 / 3 / 3 / 3 / 3 / 3 / 3

Max. PV input current 336 A ( 48 A * 7 )

Max. DC short-circuit current 462 A ( 66 A * 7 )

Max. current for DC connector 30 A

Output (AC)

Rated AC output power 150 kW

Max. AC output apparent power 165 kVA

Max. AC output current 250.7 A @ 380 Vac；240.6 A @ 400 Vac / 415 Vac；200.5 A @ 480 Vac

Rated AC output current 227.9 A @ 380 Vac；216.5 A @ 400 Vac / 415 Vac；180.4 A @ 480 Vac

Rated AC voltage 3 / N / PE, 220 V / 380 V, 230 V / 400 V , 240 V / 415 V , 277 V / 480 V

AC voltage range 320 V - 480 V ( 380 V / 400 V / 415 V )；380 V - 552 V ( 480 V )

Rated grid frequency 50 Hz / 60 Hz

Grid frequency range 45 Hz – 55 Hz / 55 Hz – 65 Hz

Harmonic (THD) ≤ 1 % ( at 400 V AC voltage and rated power ) ≤ 2 % ( at 480 V AC voltage and rated power )

Power factor at rated power / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging

Feed-in phases / AC connection 3 / 3-N-PE

Efficiency

Max. efficiency 98.8%

European efficiency 98.2% ( 380 V / 400 V / 415 V ); 98.4 % ( 480 V )

Protection & function

Grid monitoring /Yes

DC reverse polarity protection /Yes

AC short-circuit protection /Yes

Leakage current protection /Yes

Surge protection /DC Type I+II / AC Type II

Ground fault monitoring /Yes

DC switch /Yes

PV String current monitoring /Yes

Intelligent DC arc interrupter /Yes

Arc fault circuit interrupter (AFCI) /Yes

PID recovery function /Optional

General data

Dimensions (W * H * D) 1025 mm * 795 mm * 360 mm

Weight ≤ 100 kg

Mounting method Wall-mounting bracket

Topology Transformerless

Degree of protection IP66

Night power consumption  ≤ 7 W

Corrosion C5

Operating ambient temperature range -30 ℃ – 60 ℃

Allowable relative humidity range (non-condensing) 0 – 100 %

Cooling method Smart forced air cooling

Max. operating altitude 4000 m

Display LED, Bluetooth + APP

Communication RS485 / WLAN (optional) / Ethernet (optional)

DC connection type EVO2 (Max. 6 mm²)

AC connection type OT / DT terminal (120~400 mm²)

AC cable specification  Outside diameter 18 mm – 38 mm

Grid compliance IEC EN 62109-1/-2; IEC 60529; IEC 61000-6-1/-2/-3/-4; EN55011; CISPR 11; IEC 63027; EN 50549-1-10/-2-10; IEC 61727; IEC 62116; IEC 61683; EN 50530; IEC 60068-1/-2/-14/- 27/-30/-64; IEC/EN 61000-3-11/12; IEC 62920; VDE4110; VDE4120; PSE 2018; NC RFG; TOR Erzeuger Typ A; TOR Erzeuger Typ B; OVE-Richtlinie R25/03.20; G99; CEI 0-16; CEI 0-21; VDE0126; NTS UNE217001/217002; NTS 631; IEC60947.2; PEA; MEA; IEC 62910; DEWA; NRS 097; IRR-DCC-MV

Grid support  Q at night function, LVRT, HVRT, active & reactive power control and power ramp rate control
