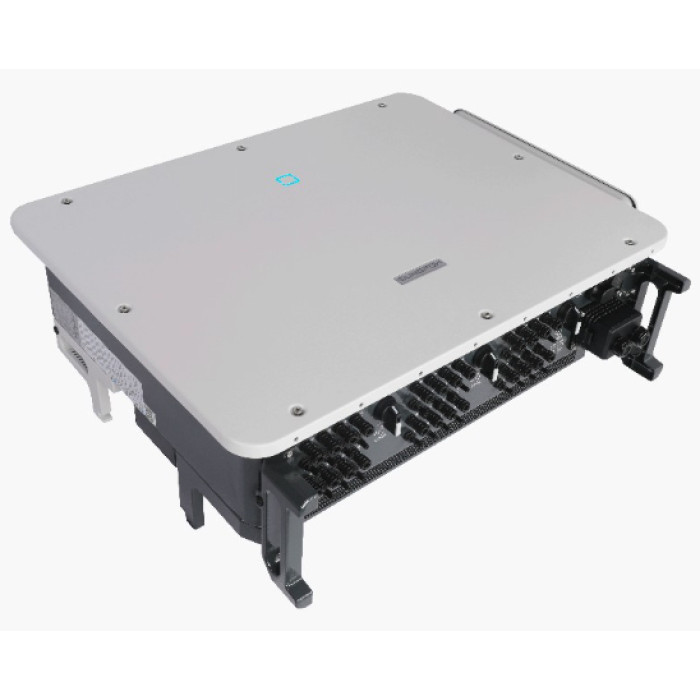

[SG125CX-P2] Sungrow Inverter 125kW, Max.PV input voltage 1,100V(DC), 12 MPPT 3 Phase

125kW, Max.PV input voltage 1,100V(DC), 12 MPPT 3 Phase

Recommended max. PV input power 175 kWp
Max. PV input voltage 1100 V
Min. PV input voltage / Startup input voltage 180V / 200V

Rated PV input voltage 600V

MPP voltage range 180V-1000V

No. of independent MPP inputs 12

No. of PV strings per MPPT 2

Max. PV input current 360 A (30 A *12)

Max. DC short-circuit current 480 A (40 A * 12)

Max. current for DC connector 20A

Output (AC)

Max. AC Output power 125 kVA (415 V @ 50 °C) *

Rated AC output apparent power 125 kVA (415 V @ 50 °C) *

Max. AC output current 181.1 A

Rated AC output current(at 230V) 181.1 A

Rated AC voltage 3 / N / PE, 230 / 400 V ; 3 / N / PE, 240 / 415 V

AC voltage range 320 – 480 V

Rated grid frequency 50 Hz / 60 Hz

Grid frequency range 45 – 55 Hz / 55 – 65 Hz

Harmonic (THD) < 3 % (at rated power)

Power factor at rated power / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging

Feed-in phases / connection phases 3 / 3-N-PE

Efficiency

Max. efficiency / European efficiency 98.5% / 98.3%

Protection

Grid monitoring /Yes

DC reverse polarity protection /Yes

AC short-circuit protection /Yes

Leakage current protection /Yes

Surge protection /DC Type I + II / AC Type II

Ground fault monitoring /Yes

DC switch /Yes

PV String current monitoring /Yes

Q at night function /Yes

Arc fault circuit interrupter (AFCI) /Yes

PID recovery function /Yes

General Data

Dimensions (W*H*D)  1020*795*360 mm

Mounting Method Wall-mounting bracket

Weight 87 kg

Topology IP66

Corrosion C5

Night power consumption < 5 W

Operating ambient temperature range  -30 to 60 ℃

Allowable relative humidity range (non-condensing)  0 – 100 %

Cooling method Smart forced air cooling

 Max. operating altitude 4000 m (> 3000 m derating)

Display LED, Bluetooth+APP

Optimizer SP600S (Optional)

Communication RS485 / Optional: WLAN, Ethernet

DC connection type  Evo2 (Max. 6 mm² )

AC connection type OT / DT terminal (Max. 240 mm²)

Grid Compliance IEC 62109-1, EN/IEC 61000-6-1/2/3/4, IEC 61727, IEC 62116, EN 50549-1/2, UTE C15-712-1, VDE V 0126-1-1, VDE-AR-N 4105:2018, VFR 2019, NC RfG,99, UNE 217002, NTS, CEI 0-21 2019,CEI0-16 2019, NRS-097-2-1

Grid Support Q at night function, LVRT, HVRT, active & reactive power control and power ramp rate control
