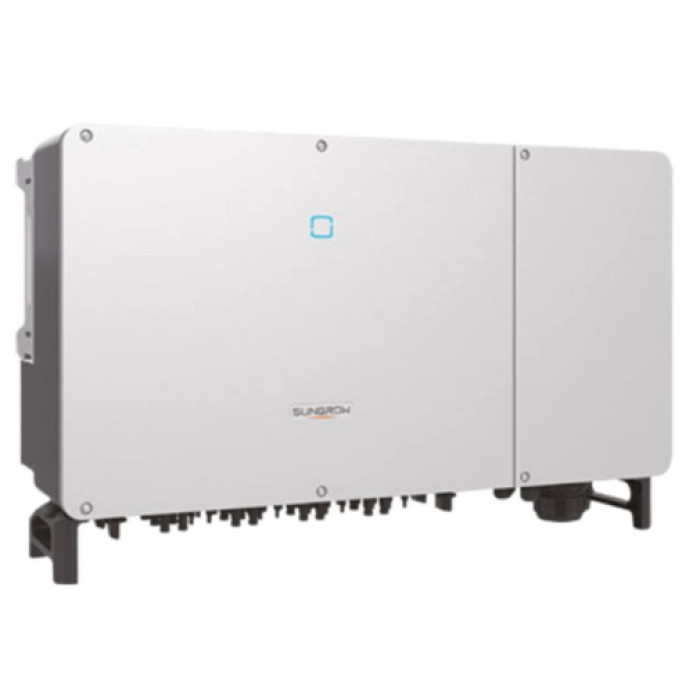

[SG110CX] Sungrow Inverter 110kW, Max.PV input voltage 1,100V(DC), 12 MPPT 3 Phase

110kW, Max.PV input voltage 1,100V(DC), 12 MPPT 3 Phase
Recommended max. PV input power 147 kWp
Max. PV input voltage 1100 V
Min. PV input voltage / Startup input voltage 200V / 250V
Rated PV input voltage 585V
MPP voltage range 200V-1000V
No. of independent MPP inputs 9
No. of PV strings per MPPT 2
Max. PV input current 234 A (26 A / 26 A / 26 A / 26 A / 26 A / 26 A / 26 A / 26 A / 26 A )
Max. DC short-circuit current 360 A (40 A / 40 A / 40 A / 40 A / 40 A / 40 A / 40 A / 40 A / 40 A )
Output (AC)
Max. AC Output power 110 kVA
Rated AC output apparent power 110 kVA
Max. AC output current 158.8 A
Rated AC voltage 3 / N / PE, 400 V
AC voltage range 320 – 460V
Rated grid frequency / Grid frequency range 50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz
Harmonic (THD) < 3 % (at rated power)
Power factor at rated power / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging
Feed-in phases / AC connection 3 / 3-PE
Efficiency
Max. efficiency / European efficiency 98.7% / 98.5%
Protection and Function
DC reverse polarity protection /Yes
AC short circuit protection /Yes
Leakage current protection /Yes
Grid monitoring /Yes
Ground fault monitoring /Yes
DC switch /Yes
AC switch /Yes
PV string monitoring /Yes
Q at night function /Yes
PID recovery function /Yes
DC terminal protective cover /Yes
Communication dongle (EyeM4) /Yes
Surge protection DC Type II / AC Type II
General Data
Dimensions (W*H*D) 1051*660*362.5 mm
Weight 89 kg
Topology Transformerless
Degree of protection IP66
Night power consumption < 2 W
Operating ambient temperature range -30 to 60 ℃ (> 50 ℃ derating)
Allowable relative humidity range 0 – 100 %
Cooling method Smart forced air cooling
Max. operating altitude 4000 m (> 3000 m derating)
Display LED, Bluetooth+APP
Communication RS485 / Optional: WLAN, Ethernet
DC connection type MC4 (Max. 6 mm² )
AC connection type OT / DT terminal (Max. 240 mm²)
Compliance IEC 62109, AS/NZS 4777.2:2020
Grid Support Q at night function, LVRT, HVRT,active & reactive power control and power ramp rate control
Country of manufacture China
