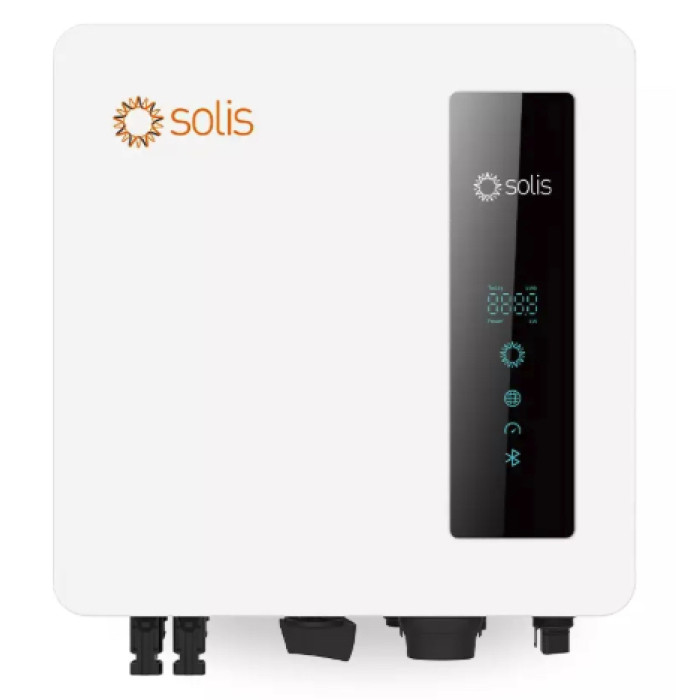

[S6-GR1P5K-S] Solis 5kW 1 Phase

5kW 1 Phase
Recommended max. PV power 7.5kW
Max. input voltage 550V
Rated voltage 330V
Start-up voltage 100V
MPPT voltage range 90-550V
Max. input current 16A/16A
Max. short circuit current 22A/22A
MPPT number/Max. input strings number 2/2
Rated output power 5kW
Max. apparent output power kVA
Max. output power 5kW
Rated grid voltage 1/N/PE, 220 V / 230 V
Rated grid frequency 50Hz/60Hz
Rated grid output current 22.7 A / 21.7 A
Max. output current 22.7A
Power factor >0.99 (0.8 leading - 0.8 lagging)
THDi <3%
Max. efficiency 97.7%
EU efficiency 97.1%
DC reverse-polarity protection /Yes
Short circuit protection /Yes
Output over current protection /Yes
Surge protection /Yes
Grid monitoring /Yes
Anti-islanding protection /Yes
Temperature protection /Yes
Integrated AFCI (DC arc-fault circuit protection) /Yes(1)
Integrated DC switch /Yes
Dimensions (W*H*D) 330*371*161 mm
Weight 8.9kg
Topology Transformerless
Self-consumption (night) <1 W
Operating ambient temperature range -25 ~ +60°C
Relative humidity 0-100%
Ingress protection IP66
Cooling concept Natural convection
Max. operation altitude 4000m
Grid connection standard G98(2) or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530, MEA, PEA
Safety/EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3
DC connection MC4 connector
AC connection Quick connection plug
Display LED + APP
Communication RS485, USB, Optional: Wi-Fi, GPRS
