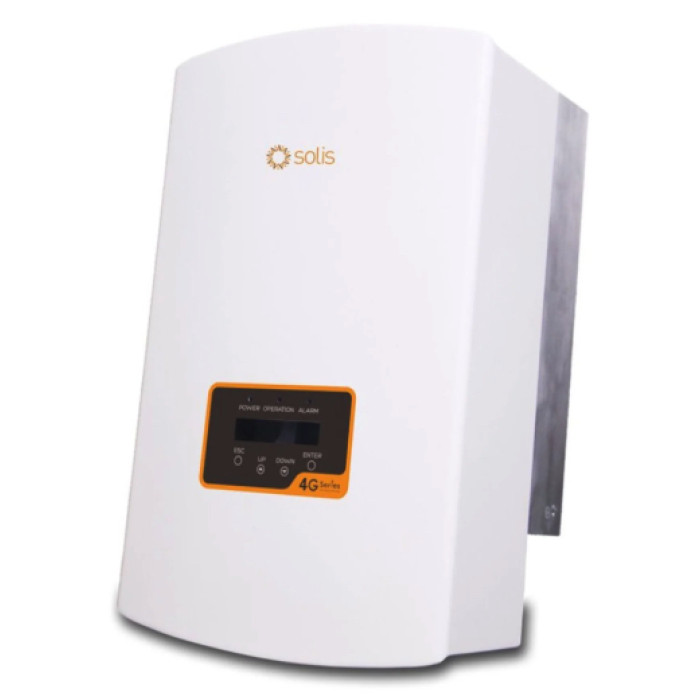

[S6-GR1P10K] Solis 10kW 1 Phase

10kW 1 Phase
Recommended max. PV power 15kW
Max. input voltage 550V
Rated voltage 330V
Start-up voltage 60V
MPPT voltage range 50 - 500 V
Max. input current 20 A / 20 A / 20 A
Max. short circuit current 25 A / 25 A / 25 A
MPPT number / Max. input strings number 3 / 3
Rated output power 10kW
Max. apparent output power 10kVA
Max. output power 10kW
Rated grid voltage 1/N/PE, 220 V / 230 V
Rated grid frequency 50 Hz / 60 Hz
Rated grid output current 45.5A/43.5A
Max. output current 45.5A
Power factor > 0.99 (0.8 leading - 0.8 lagging)
THDi <3%
Max. efficiency 98.0%
EU efficiency 97.1%
DC reverse-polarity protection /Yes
Short circuit protection  /Yes
Output over current protection  /Yes
Surge protection  /Yes
Grid monitoring  /Yes
Anti-islanding protection  /Yes
Temperature protection  /Yes
Multi peak scan  /Yes
Integrated AFCI 2.0 Optional
Integrated DC switch  /Yes
Dimensions (W × H × D) 335 × 510 × 220 mm
Weight 16.1 kg
Topology Transformerless
Self-consumption (night) < 1 W
Operating ambient temperature range -25 ~ +60°C
Relative humidity 0 - 100%
Ingress protection IP66
Noise emission (typical) < 40 dB(A)
Cooling concept Natural cooling with internal fan
Max. operation altitude 4000m
Grid connection standard IEC 62116, IEC 61727, IEC 61683, G99, EN 50549-1, EN 50549-10
Safety / EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
DC connection MC4 connector
AC connection OT Terminal
Display LED digital display & Bluetooth + APP
Communication RS485, Optional: Wi-Fi, GPRS
