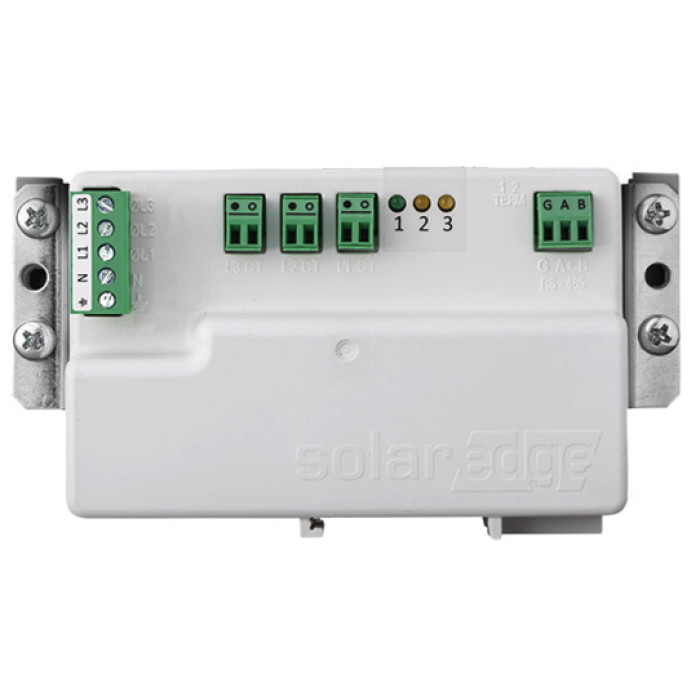

[SE-MTR-3Y-400V-A] SolarEdge 1PH/3PH 230V/400V Elect. Meter

1PH/3PH 230V/400V Elect. Meter
High accuracy meter readings for production/consumption monitoring.
Import/Export meter readings for export limitation functionality.
Small and easy to install, fitting in standard electrical panels.
Supports residential, commercial, and utility-size installations.
Supports RS485 120Ω line termination.
Operating Voltage Range (Line to Line) 207-440Vac
Operating Voltage Range (Line to Neutral) 108-305
Nominal Voltage Range (Line to Line) 230-400
Nominal Voltage Range (Line to Neutral) 120 to 277
AC Frequency 45-65Hz
Grids Supported (2) - Single Phase; Three Phase L/N/PE; L1/L2/L3/N/PE
Power Consumption (max) 3W
CT Inputs 3
Supported Communication Interfaces RS485 half-duplex, 3 wires (A, B, GND)
Response Time (3) ≤200ms
Default Device ID (Modbus) 2
RS485 Line Termination 120 Ω
Accuracy (1% - 100% of Rated CT Current) ±1.25
IEC Accuracy IEC 62053-21 Class 1, IEC 62053-23 Class 2
Safety IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 No. 61010-1-04
Immunity EN 61326: 2000, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
Emissions EN 55022 Class B
Dimensions (HxWxD) 75 x 138.6 x 35 / 2.95 x 5.45 x 1.37 mm/in
Weight 225 / 0.49 gr/lb
Operating Temperature Range -40 to +85 / -40 to +185 °C/°F
Relative Humidity (non-condensing) 5% to 90% up to 40°C decreasing linearity to 50% RH at 55°C
Protection Rating IP20 - Suitable for indoor use
Mounting Type DIN Rail / Surface mount
AC voltage Terminal Block up to 12 / 2.5 AWG/mm²
Communication Terminal Block 24 / 0.2 to 14 / 2 AWG/mm²
Current Transformer Terminal Block 24 / 0.2 to 14 / 2 AWG/mm²
