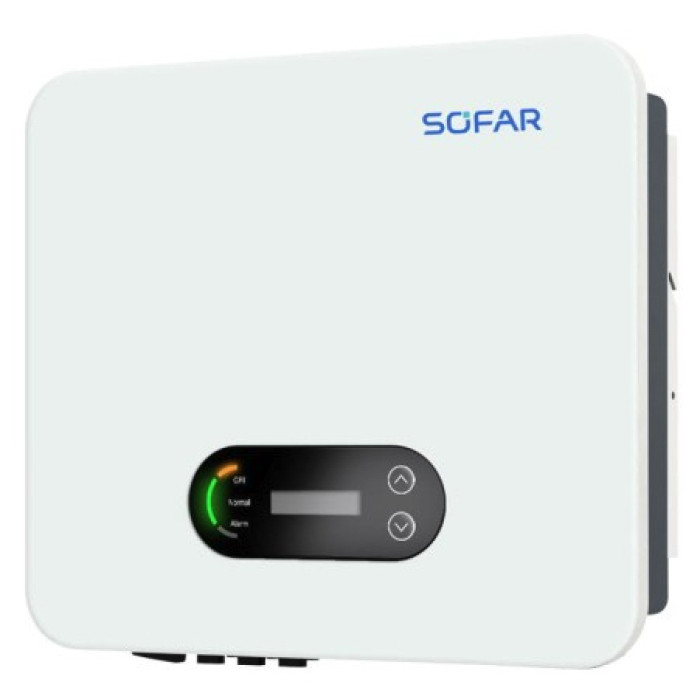

[5.5KTLX-G3] Sofar 5.5KW 3 Phase
![[5.5KTLX-G3] Sofar 5.5KW 3 Phase](/media/com_eshop/products/resized/5.5KTLX-G3-700x700.jpg "[5.5KTLX-G3] Sofar 5.5KW 3 Phase")
MANUFACTURER:
Sofar
P/N :
5.5KTLX-G3
5.5KTLX-G3
SOFARSOLAR 5.5KTLX-G3 will be a new and improved version of the most popular, reliable, fast and easy to mount
two-speed SOFAR PV inverters. Thanks to a wide voltage range and maximum efficiency of up to 98.6%, 1.1 times continuous output overload, maximum DC input voltage up to 1100 V,
Sofar 5Y:
การรับประกันสินค้า 5 ปี
5.5KW 3 Phase
SOFARSOLAR 4.4KTL-X inverters are not only easy to mount and configure, but also offer a strong output Innovative
solutions implemented in these products, such as low starting voltage, wide MPPT voltage, IV curve shadow scan function with intelligent thrust level monitoring to increase generation revenue, adjustable MPPT scan refresh time, wide range of monitoring options, make them an ideal choice for 3-phase residential and small commercial PV systems.
Thanks to its IP65-rated cast seal, audible and light alarm function, and built-in Type II SPD for both DC and AC, overvoltage/undervoltage, overcurrent, overtemperature and other multiple protections, it is a reliable and stable source of electricity from the Sun.
Manufacturer SOFAR
Rated power 5500W
Power supply 3-phase
Hybrid device No (on-grid)
MPPT 2
Warranty 12Years
Net width 430 mm
Net depth 179 mm
Net height 375 mm
RS485 Yes
SPD Type II Yes
AFCI Optinal
MPPT voltage range 140-1000V
Maksymalny prąd wejściowy na MPPT [A] 15/15A
Maksymalna moc wejściowa [W] 7500W
Sprawność europejska 97.5%
Weight 17.46kg
