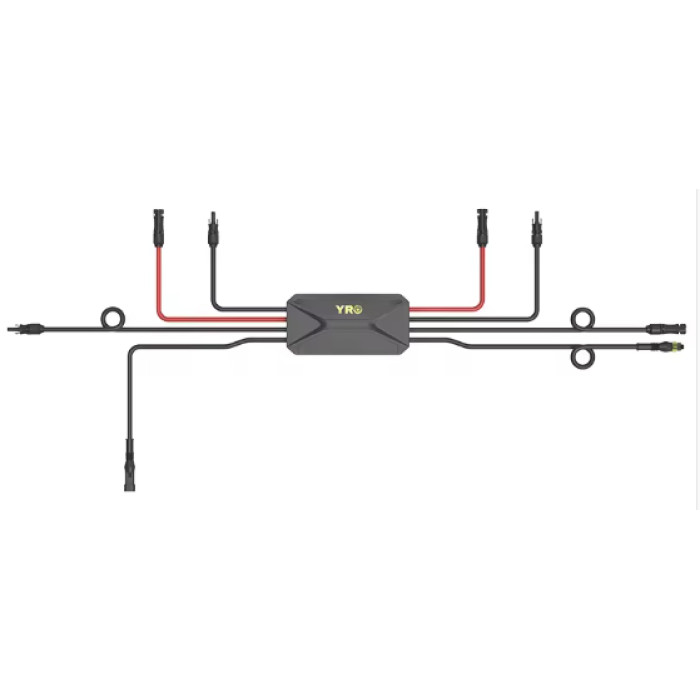

[YRSD-1P] YRO Rapid Shutdown Device 18A 120V 1 to 1

Rapid Shutdown Device 18A 120V 1 to 1
Number of PV Inputs 1
Maximum Allowed Input Voltage 80/120V
Maximum Allowed Input Current 18A/20A
Maximum Output Volt age 80/120V
System Volt age 1000V/1500V
Control Compliance 24VDC + 2 x 0.8mm2 Cable
Control Requirements 21.6V~26.4V at nomi. 27~36mA/unit
Ambient Operating Temperature -30°C to +60°C
Protection Temperature 85°C
IP Level >IP68, NEMA 4X
Fire-proof Level Flame retardant, UL94-V0
Humidity 0%~90%
PV Connectors Connector (Customized)
Design Life Span 25Years
Size  125*59.7*30.2
Weight < 200g (Excluding Cables)
Cable Length, PV1+ Input 1200mm
Cable Length, PV1- Input 1200mm
Cable Length, PV2+ Input /
Cable Length, PV2- Input /
Cable Length, Power Out put 1800mm
Cable Length, 24Vdc Control Cable 1800mm
andard Comliance NEC2017/2020 (690.12); UL1741; UL3741; IEC/EN62109; IEC/EN61000
