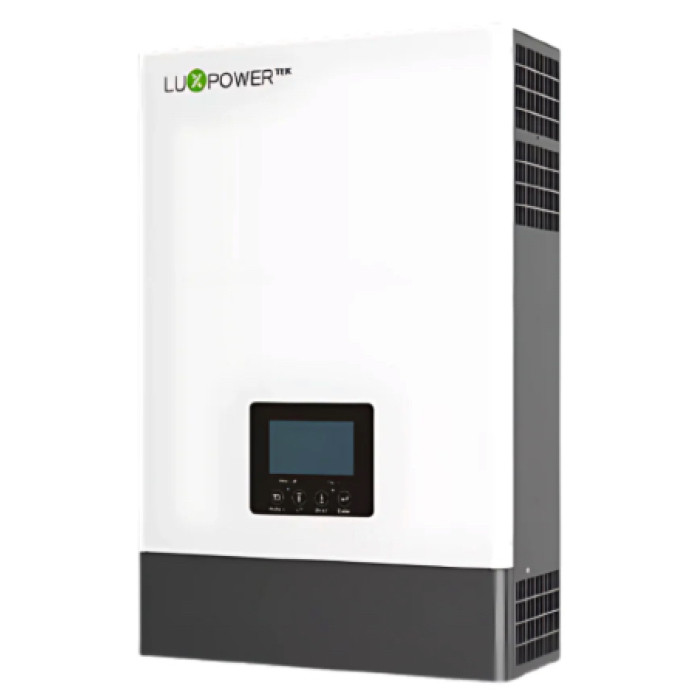

[SNA6000W] Luxpower Inverter Hybrid 6KW 1Phase

Inverter Hybrid 6KW 1Phase
Max. PV array power (W) 8000 (4000/4000)
Reted PV input voltage (V) 320
Number of independent MPPT inputs 2
PV input voltage range (V) 100-480
MPPT voltage range (V) 120-385
Start-up voltage (V) 100
Max. PV input current per MPPT (A) 17/17
Max. PV short-circuit current input per MPPT (A) 25/25
Battery
Compatible battery type Lithium-ion/Lead-Acid
Rated battery voltage (V) 48
Battery voltage range (V) 38.4 60
Max. charging / discharging current (A) 140
Max. discharging/discharging power(W) 6000
Recomand capacity of battery per inverter >200AH
Force wake up battery from PV function Yes
Force wake up battery from Grid function Yes
Grid
Rated AC voltage(V) 230
Rated AC frequency(Hz) 50/60
Rated AC output current(A) 26.5
Rated AC output power(W) 6000
Max. AC intput current(A) 39.5
Max. AC intput power(W) 9000
PE 0.99%
THDI <5%
Rated AC current of BYPASS relays(A) 40
UPS
Rated output power (W) 6000
Rated output voltage (V) 230
Rated output current (A) 26.5
Rated output frequency (Hz) 50/60
Surge power, duration 2Pn, <2s
Switching time <15ms@Single/ <;30ms@Parallel>
Wave form Sine wave
THDV 3%
Efficiency
Max. MPPT efficiency 0.99
Max. efficiency 0.93
EU efficiency /
Max. charging efficiency 0.93
Max. discharging efficiency 0.93
Protection
Over current/voltage protection Yes
AC Short-circuit current protection Yes
Grid monitoring Yes
AC Surge protection Type III Yes
Battery reverse polarity protection Yes
General
Dimensions ( W*H*D mm ) 303*505*135mm/11.9*19.9*5.3inch
Weight (kg) 14.5kg/32Ibs
Ingress protection rating IP20
Operating environment temperature range(°C) 0 50°C
Storage temperature range(°C) -15 60°C
Relative humidity 5% 95%
Display & Communication interface LCD+LED, RS485/Wi-Fi/CAN
Warranty 2years
Cooling method FAN
Topology Transformer-less
Altitude (m) <2000m
Noise emission (typical) <50dB
Standard & Certification
IEC 62109-1, IEC 62109-2, IEC 61000
