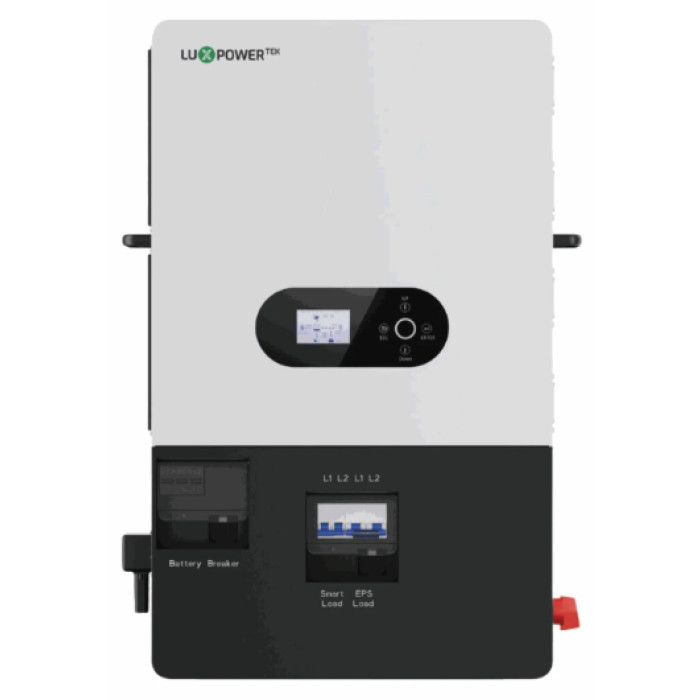

[SNA12K] Luxpower Inverter Hybrid 12KW 1Phase

Inverter Hybrid 12KW 1Phase
Max. PV array power (W) 24000 (12000/12000)
Reted PV input voltage (V) 320
Number of independent MPPT inputs 2
PV input voltage range (V) 100-480
MPPT voltage range (V) 120-385
Start-up voltage (V) 100
Max. PV input current per MPPT (A) 35/35
Max. PV short-circuit current input per MPPT (A) 44/44
Battery
Compatible battery type Lithium-ion/Lead-Acid
Rated battery voltage (V) 48/51.2
Battery voltage range (V) 46.4-60/38.4-60
Max. charging / discharging current (A) 250
Max. charging / discharging power (W) 12000
Force wake up battery from PV and Grid function Yes
Grid
Rated AC voltage (V) 230
Acceptable Input Voltage Range (V) 90~280
Rated AC frequency (Hz) 60/50
Rated AC intput current (A) 100
Rated AC intput power (W) 24000
PF 0.99
THDI <5%
Max. continuous AC passthrough current(A) 100
UPS
Rated output power (W) 12000
Rated output voltage (V) 230
Rated output current (A) 50
Rated output frequency (Hz) 50/60
Surge power, duration 2Pn, 5s
Switching time ( UPS ) <10ms@Single and Parallel
Wave form Sine wave
THDV 3%
GEN
Acceptable input voltage range 230
Max. AC input voltage (V) 280
Max. AC input current (A) 63
Rated input frequency 50Hz/60Hz (Auto detection)
Transfer time <10ms@Single; <20ms@Parallel>
THVD <3%
Overload protection 5s@≥150% load /10s@110%~150% load
Efficiency
Max. efficiency 90.0%
Max. charging / discharging efficiency 90.0%
Max. MPPT efficiency 99.0%
Protection
PV reverse polarity protection(Y/N) Yes
Over current / voltage protection(Y/N) Yes
AC Short-circuit current protection(Y/N) Yes
Grid monitoring(Y/N) Yes
DC switch(Y/N) Yes
DC / AC Surge protection Type lll Yes
Battery reverse polarity protection(Y/N) Yes
General
Dimensions ( W*H*D mm ) 530*830*150mm(17.72*25.59*5.9inch)
Weight (kg) 40kg
Ingress protection rating IP20
Operating environment temperature range(°C) 0~45
Storage temperature range(°C) -15~60
Relative humidity 5% ~ 95%
Display & Communication interface LCD+RGB, RS485 / Wifi / CAN
Warranty 2years
Cooling method Smart cooling
Topology on AC / Battery side Transformer-less / Transformer
Altitude (m) <2000
Noise emission (typical) <50dB
Standard & Certification
CE
