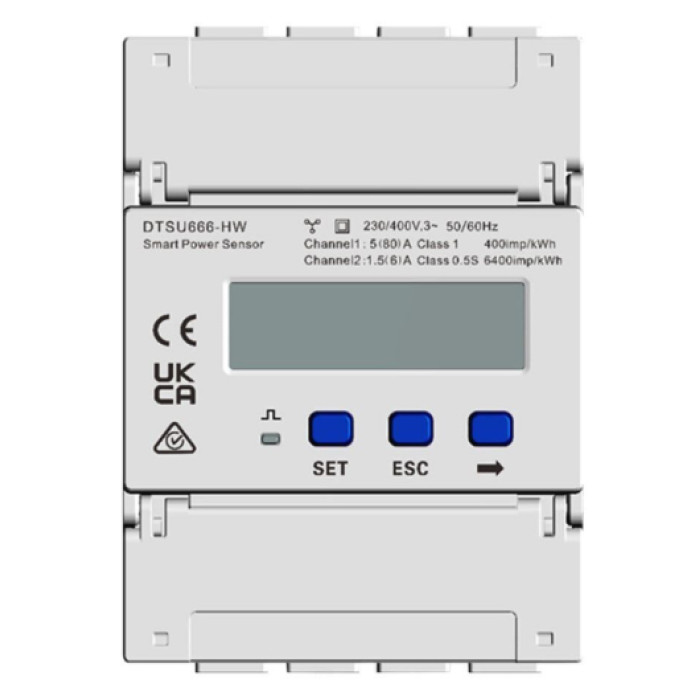

[DTSU666-HW] Huawei Smart Meter 3PH DTSU666-YDS6080
![[DTSU666-HW] Huawei Smart Meter 3PH DTSU666-YDS6080](/media/com_eshop/products/resized/DTSU666-HW-700x700.jpg "[DTSU666-HW] Huawei Smart Meter 3PH DTSU666-YDS6080")
MANUFACTURER:
HUAWEI
P/N :
DTSU666-HW
DTSU666-HW
Nominal voltage 230 V AC/400 V AC, 50 Hz/60 Hz
Current measurement range Direct connection: 0–80 A Connection through current transformers: > 80 A
Voltage measurement range 90–1000 V
Electricity metering accuracy Class 1
Power grid system hree-phase four-wire or three-phase three-wire
HUAWEI 2Y:
การรับประกันสินค้า 2 ปี
Smart Meter 3PH DTSU666-YDS6080
Nominal voltage 230 V AC/400 V AC, 50 Hz/60 Hz
Current measurement range Direct connection: 0–80 A Connection through current transformers: > 80 A
Voltage measurement range 90–1000 V
Electricity metering accuracy Class 1
Power grid system hree-phase four-wire or three-phase three-wire
Baud rate 4800/9600/19200/115200 bps (default value: 9600 bps)
Operating temperature –25℃ to +60℃
Installation mode Guide rail-mounted
Certification CE, RCM, and UKCA
