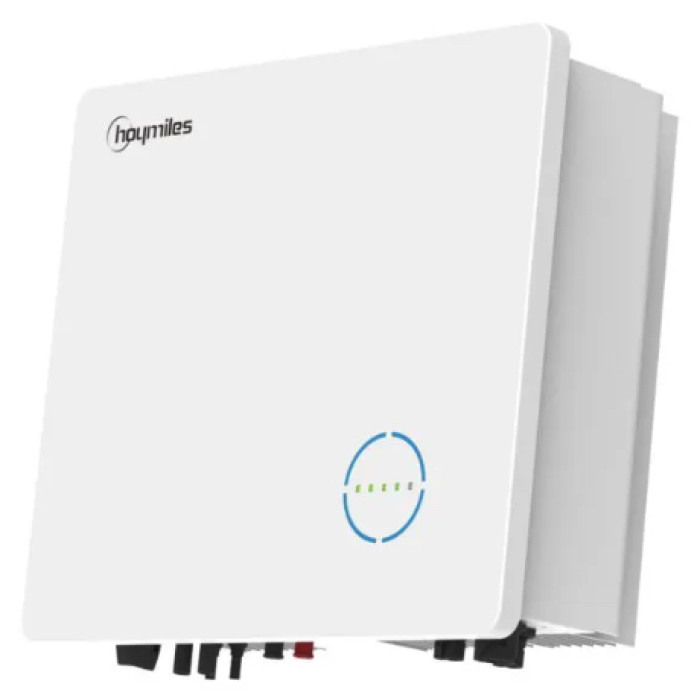

[HYT-12.0HV-EUG1] Hoymiles Inverter 12kW 3 phase

Inverter 12kW 3 phase

Battery type Li-ion

Battery voltage range (V) 170-600

Max. charge/discharge current (A) 30/30

Max. charge/discharge power (W) 8000/8000

Charging strategy for Li-ion battery Self-adaption to BMS

Communication CAN

PV Input

Recommended max. PV power (W) 15000

Max. input voltage (V) 1000

Rated voltage (V) 720

Start-up voltage (V) 250

MPPT voltage range (V) 200-950

Max. input current (A) 14/28

Max. short circuit current (A) 17/34

MPPT number/Max. input strings number 2/3

AC Input and Output (On-grid)

Rated output power (W) 12000

Max. output apparent power (VA) 12000

Max. input power (W) 16000

Grid form 3L/N/PE

Rated AC output voltage/Range (V) 380/400, 266-480

Rated grid frequency (Hz) 50/60

Max. output current (A) 17.4

Max. input current (A) 24.2

Power factor >0.99 (0.8 leading ... 0.8 lagging)

THDi (@rated output) <3%

AC Output (Off-grid)

Rated output power (W) 12000

Max. output apparent power (VA) 16000, 10s

Back-up switch time (ms) <10

Grid form 3L/N/PE

Rated output voltage (V) 380/400

Rated output frequency (Hz) 50/60

Max. continuous output current (A) 17.4

THDv (@linear load) <3%

 Efficiency

MPPT efficiency 99.9%

Max. efficiency 98.0%

EU efficiency 97.5%

Max. battery discharge to AC efficiency 97.5%

Protection

Anti-islanding protection Integrated

PV string input reverse polarity protection Integrated

Insulation resistor detection Integrated

Residual current monitoring unit Integrated

AC over current protection Integrated

AC short current protection Integrated

AC overvoltage and undervoltage protection Integrated

Surge protection DC Type II/AC Type III

General

Dimensions (W × H × D [mm]) 502 × 486 × 202

Weight (kg) 26.5

Mounting Wall mounting

Operating temperature (℃) -25 to +65 (>45, derating)

Relative humidity 0-95%, no condensing

Cooling Natural convection

Topology (Solar/Battery) Transformerless/Transformerless

Altitude (m) ≤2000

Protection degree IP65

Noise (dB) <40

User interface LED, App

Digital input/output DRM, 1 × DI, 2 × DO

Communication RS485, optional: Wi-Fi/Ethernet/4G(2)

Certifications and Standards

Grid connection standard EN 50549, VDE-AR-N 4105, VFR: 2019, TOR Erzeuger Type A, RD647, NTS (SENP), CEI 0-21 2019:04

Safety/EMC standard IEC 62109-1/-2, EN 61000-6-1/-3
