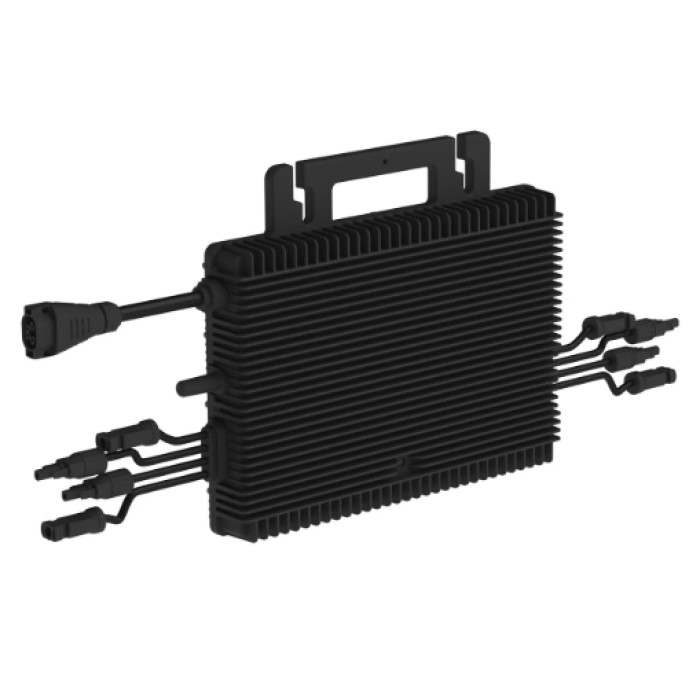

[HMS-2000D-4T] Hoymiles 2KW 1 Phase

2KW 1 Phase
Commonly used module power (W) 400 to 670+
Maximum input voltage (V) 65
MPPT voltage range (V) 16-60
Start-up voltage (V) 22
Maximum input current (A) 4 × 16
Maximum input short circuit current (A) 4 × 25
Number of MPPTs 2
Number of inputs per MPPT 2
Output Data (AC)
Rated output power (W) 2000
Rated output current (A) 9.09 8.70 8.33
Nominal output voltage/range (V)* 9.09 8.70 8.33
Nominal output voltage/range (V)*  220/180–275 230/180–275 240/180–275
Nominal frequency/range (Hz)*
50/45–55 or 60/55–65
Adjustable power factor (@nominal power) > 0.99 default 0.8 leading … 0.8 lagging
Total harmonic distortion (@nominal power) < 3%
DC/AC ratio ≤ 1.35
Maximum units per 6 mm² line**  4 4 4
Efficiency
Peak efficiency 96.50%
Nominal MPPT efficiency 99.80%
Night power consumption (mW) < 50
Mechanical Data
Ambient temperature range (℃) -40 to +65
Dimensions (W × H × D [mm]) 310 × 185 × 40.6
Weight (kg) 4.5
Enclosure rating Outdoor-IP67
Cooling Natural convection-No fans
Features
Communication Sub-1G
Type of isolation Galvanically Isolated HF Transformer
Monitoring S-Miles Cloud (Hoymiles Monitoring Platform)
Compliance IS 16169 / IEC 62116, IS 16221 (Part 2), UL 1741, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3, IEC 62920
