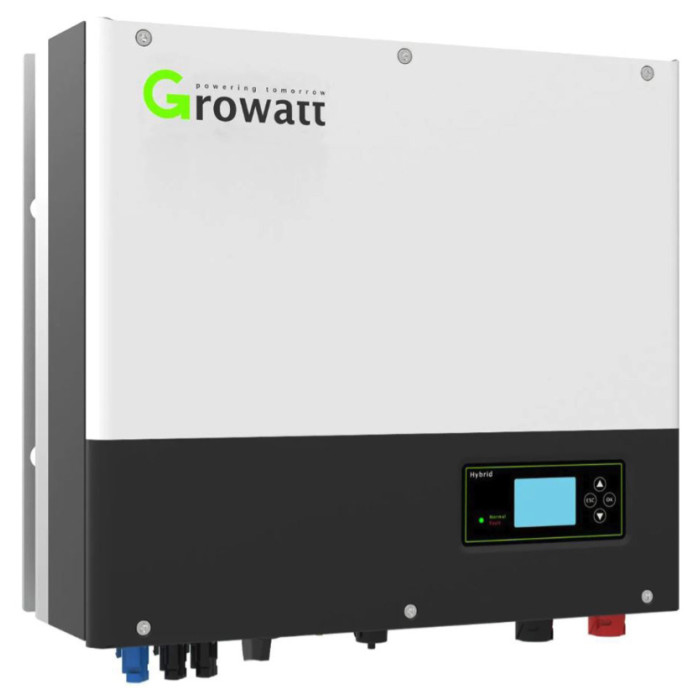

[SPH6000] Growatt 6kW 1 phases on/off-grid inverter

6kW 1 phases on/off-grid inverter
Max. recommended PV power 8000W
Start voltage 150V
Max. PV voltage 550V
PV voltage range 120V-550V
MPPT voltage range/ nominal voltage 150V-550V/360V
Max. input current of tracker A/B 12A/12A
Number of MPP trackers / strings per MPP tracker 2/1
AC Output
Rated AC output power 6000W
Max. AC apparent power 6000VA
Max. output current 27A
Nominal AC output voltage 230V
Nominal grid frequency 50/60Hz
Power factor at rated power 1
Displacement power factor 0.8leading… 0.8lagging
THDI <3%
AC output power(Backup)
Max. output power 3000W
Rated AC output voltage 230Vac
Rated AC output frequency 50/60Hz
Automatic switchover time <0.5S
Battery data
Battery voltage range 42-59V
Max. charging voltage 58V
Max charging and discharging curren 66A
Max charging and discharging power 3000W
Battery type lithium /Lead-acid
Capacity of battery 50~2000AH
Efficiency
MAX. efficiency 97.7%
European efficiency 97.1%
MPPT efficiency 99.9%
Protection devices
DC switch /Yes
DC reverse polarity protection /Yes
Battery reverse protection /Yes
Output over current protection /Yes
Output over voltage protection /Yes
Ground fault monitoring /Yes
Grid monitoring /Yes
Integrated all - pole sensitive leakage /Yes
General Data
Dimensions (W / H / D) in mm 547/516/170
Weight 27gk
Operating temperature range –25°C ... +60°C
Noise emission (typical) ≤
25 dB(A)
Altitude 2000m
Self-Consumption < 3 W
Topology transformerless
Cooling concept Natural
Environmental Protection Rating IP65
Relative humidity 100%
Features
DC connection MC4/H4(opt)
Interface:RS232/USB/CAN/RF/Wi-Fi yes/yes/yes/opt/opt
Display LCD
Warranty: 5 years / 10 years yes /opt
