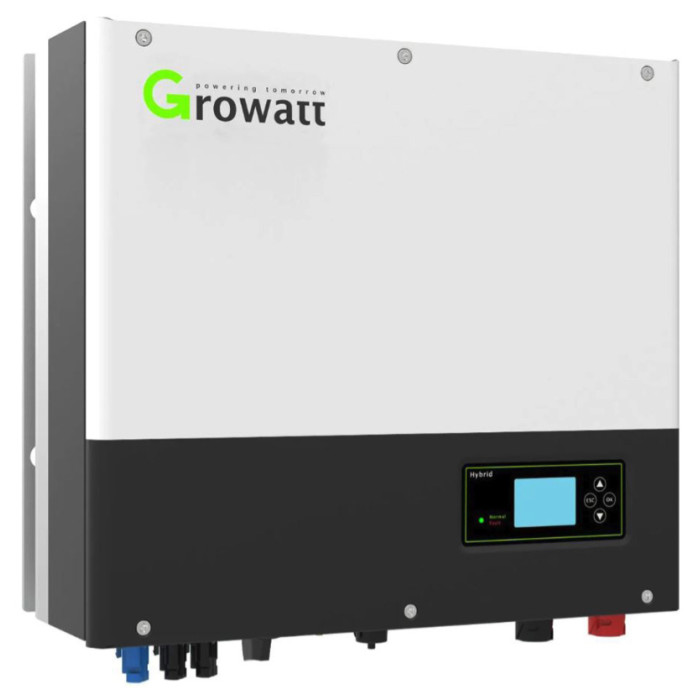

[SPH5000TL3] Growatt 5kW 3 phases on/off-grid inverter

5kW 3 phases on/off-grid inverter
Max. recommended PV power (for module STC) 3750W*
Max. DC voltage 1000
Start voltage 120V
MPP voltage range 120V-1000V/600V
No. of MPP trackers 3
No. of PV strings per MPP tracker 1
Max. input current per MPP tracker 13.5A
Max. short-circuit current per MPP tracker 16.9A
Output data (AC)
AC nominal power 5000W
Max. AC apparent power 5000VA
Nominal AC voltage (range*) 230V/400V(310-476V)
AC grid frequency (range*) 50Hz/60Hz (45Hz-65Hz)
Max. output current 7.6A
Adjustable power factor 0.8leading…0.8lagging
THDi <3%
AC grid connection type 3W+N+PE
Battery data (DC)
Battery voltage rang 100-550V
Max charging and discharging current 25A
Continuous charging and discharging power  5000W
Type of battery Lithium/Lead-acid
Backup power (AC)
Max.Ac output power 5000W
Max.Ac apparent power 5000VA
Max.output current 7.6A
Nominal AC output voltage 230V/400V
Nominal AC output frequency 50/60Hz
THDv <3%
Switch time <10ms
Efficiency
Max.Efficiency 97.8%
European Efficiency 97.2%
Euro battery discharge Efficiency 97.4%
MPPT efficiency ≥99.9%
General data
Dimensions (W / H / D) 505/453/198mm
Weight 30Kg
Operating temperature range –25°C ... +60°C
Nighttime power consumtion <13W
Topology Tranformerless
Cooling Natural
Protection degree IP65
Relative humidity 0~100%
Altitude 3000m
DC connection H4 / MC4 Optinal
AC connection Connector
Display LCD+LED
Interfaces: RS485/CAN/USB Yes
Monitor: RF/WIFI/GPRS Optinal
Warranty (5/10 years) Yes/Opt
