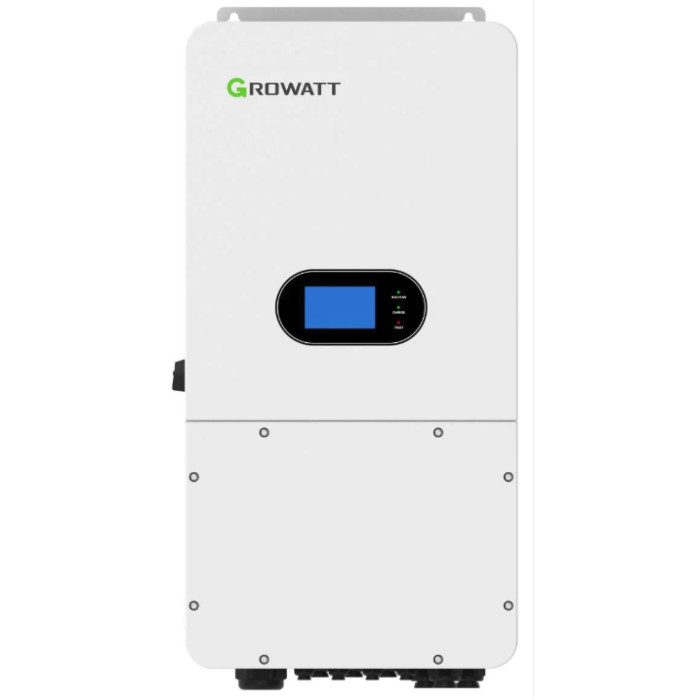

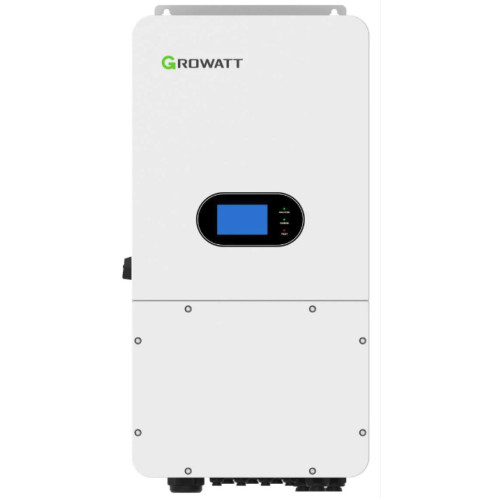

[SPH10000TL-HU] Growatt 10kW 1 phases on/off-grid inverter

10kW 1 phases on/off-grid inverter
Max. recommended PV power (for module STC) 15000W
Max. input power for single MPPT 10000W
Max. DC voltage 525V
Start voltage 150V
MPP voltage range 150V-450V/370V
No. of MPP trackers 3
No. of PV strings per MPP tracker 2
Max. input current per MPP tracker 22A
Max. short-circuit current per MPP tracker 28A
AC input data (AC)
Nominal AC input power 10000W
Nominal input voltage 230V
Nominal input current 43.5A
Max. grid passthrough current 62.5A
Max. generator input power 10000W
Output data (AC)
AC nominal power 10000W
Max. AC apparent power 10000VA
Nominal AC voltage (range*) 220V/230V/240V
AC grid frequency (range*) 50Hz/60Hz
Max. output current 50A
Adjustable power factor 0.8leading…0.8lagging
THDi <3%
AC grid connection type Single phase
Battery data (DC) 40~60V
Max charging and discharging current 200A
Continuous charging and discharging power 10000W
Type of battery Lithium /Lead-acid
Backup power (AC)
AC nominal output power 10000W
Nominal AC output voltage 220V/230V/240V
Nominal AC output frequency 50/60Hz
Switch time <10ms
Efficiency
Peak. efficiency 97.50%
CEC welghted efficiency 96.7 %
MPPT efficiency ≥99.5%
Protection devices
PV switch Yes
AC over current protection Yes
AC over voltage protection Yes
Ground fault monitoring Yes
Grid monitoring Yes
Anti-islanding protection Yes
Residual-current monitoring unit Yes
Insulation resistance monitoring Yes
Surge protection DC Type II / AC Type II
General data
Max stackable numbe 6
Dimensions (W / H / D) 440/883/254mm
Weight 48.84Kg
Operating temperature range –25°C ... +60°C（with derating above 45°C）
Noise emission (typical) ≤ 60 dB(A)
Self-Consumption < 60 W
Topology Tranformerless
Cooling Smart cooling
Protection degree IP65
Relative humidity 0~100%
Altitude 2000m
DC connection Quick Connector
Display LCD
Interfaces: RS485/CAN/USB Yes
Communication WiFi
Warranty (5/10 years) Yes/Opt
