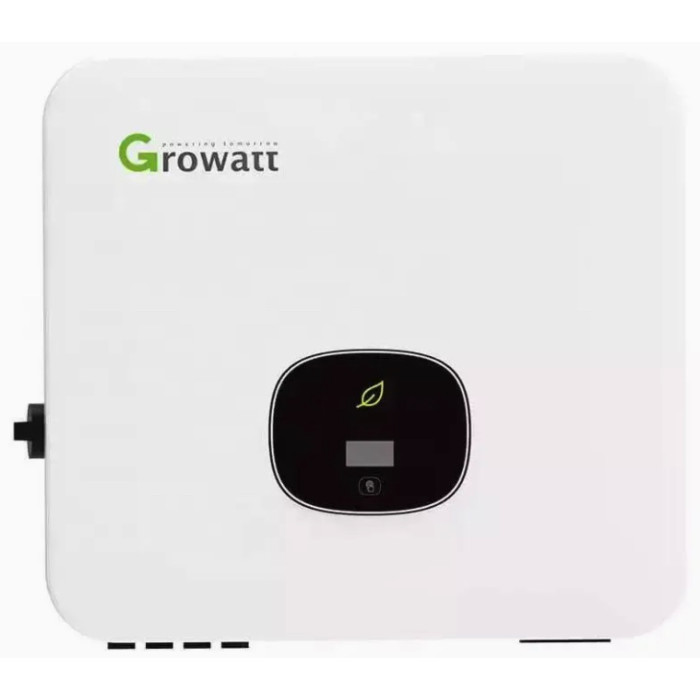

[MOD10KTL-X] Growatt 10kW 3 phases on-grid inverter

10kW 3 phases on-grid inverter
Max. recommended PV power (for module STC 15000W
Max. DC voltage 1100V
Start voltage 160V
Nominal voltage 580V
MPPT voltage range 140V-1000V
No. of MPP trackers 2
No. of PV strings per MPP tracker 1
Max. input current per MPP tracker 13A
Max. short-circuit current per MPP tracker 16A
Output data (AC)
AC nominal power 10000W
Max. AC apparent power 11000VA*
Nominal AC voltage（range*）220V/380V, 230V/400V (340-440V)
AC grid frequency（range*）50/60 Hz (45-55Hz/55-65 Hz)
Max. output current 16.7A
Adjustable power factor 0.8leading…0.8lagging
THDi <3%
AC grid connection type 3W+N+PE
Efficiency
MAX. efficiency 98.6%
European efficiency 98.1%
MPPT efficiency 99.9%
Protection devices
DC reverse polarity protection /Yes
DC Switch /Yes
AC/DC surge protection Type II / Type II
Insulation resistance monitoring /Yes
AC short-circuit protection /Yes
Ground fault monitoring /Yes
Grid monitoring /Yes
Anti-islanding protection /Yes
Residual-current monitoring unit /Yes
String fault monitoring /Yes
AFCI protection Optional
General data
Dimensions (W / H / D) 425/387/178mm
Weight 14kg
Operating temperature range –25°C ... +60°C
Nighttime power consumption < 1W
Topology Transformerless
Cooling Natural convection
Protection degree IP66
Relative humidity 0~100%
Altitude 4000m
DC connection H4/MC4(Optional)
AC connection Connector
Display OLED+LED/WIFI+APP
Interfaces: USB/RS485/WIFI /GPRS//LAN/RF yes/yes/Optional/Optional/Optional/Optional
Warranty: 5 / 10 years Yes/Optional
