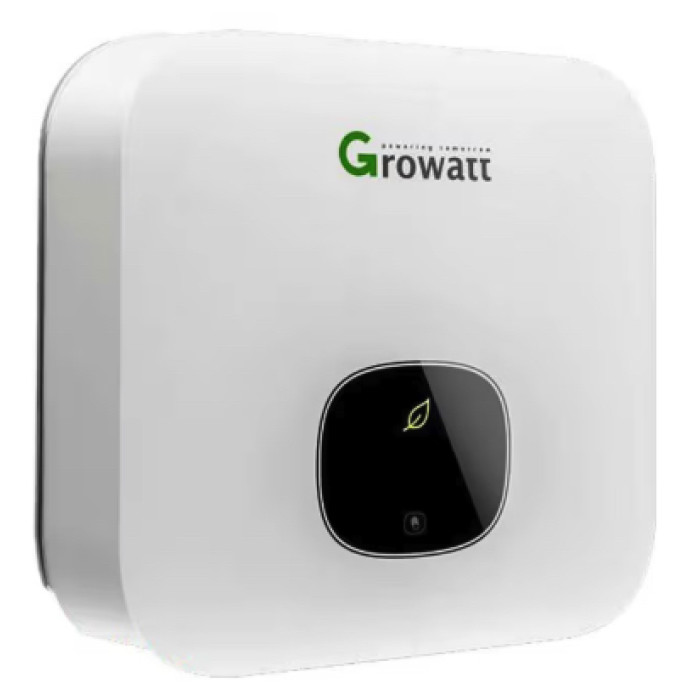

[MIN5000TL-X] Growatt 5kW 1 phases on-grid inverter
![[MIN5000TL-X] Growatt 5kW 1 phases on-grid inverter](/media/com_eshop/products/resized/MIN5000TL-X-700x700.jpg "[MIN5000TL-X] Growatt 5kW 1 phases on-grid inverter")
MANUFACTURER:
Growatt
P/N :
MIN5000TL-X
MIN5000TL-X
Growatt MIN 5000 TL-X inverter features an affordable price and high quality. It is certified for the global market and is often used in consumer installations. Growatt inverters can be purchased with power generation visualization devices called Shine Vision. This is an extremely convenient solution when the inverter is located somewhere in the back room or in the technical room and the display itself can be placed in the living room and conveniently observe energy production.
Growatt 10Y:
การรับประกันสินค้า 10 ปี
5kW 1 phases on-grid inverter
One-phase inverter designed for residential and small industrial applications. Available capacities: 2.5kW, 3kW, 3.6kW, 4.2kW, 4.6kW, 5kW, 6kW. Inverter is also equipped with a range of advanced features that make it easy to install and use. It has a user-friendly interface that allows homeowners and installers to monitor system performance and adjust settings as needed. The inverter is also compatible with a range of monitoring systems, including WiFi, Ethernet, and RS485.
GENERAL INFORMATION
Type II SPD on DC side
AFCI function optional
Max. efficiency 98.4%
Dual MPP trackers
Wide MPPT voltage range
Future proof battery ready
Touch key and OLED display
Compact design for one person installation
Growatt comprehensive warranty plan
Basic specifications of inverter Growatt MIN 5000 TL-X:
Max. recommended PV power (for module STC) [W] : 7000
Max. DC voltage : 550V
Nominal Voltage: 360V
AC nominal power [W] : 5000
Max. output current [A] : 22.7
Dimensions (W / H / D) [mm] : 375/350/160
Weight [kg] : 10.8
MAX. efficiency [%] : 98.4
Protection degree: IP65
Interfaces: Interfaces: RS485 / USB/Wi-Fi/GPRS/ RF/LAN
Cooling : Natural convection
Topology : Transformless
