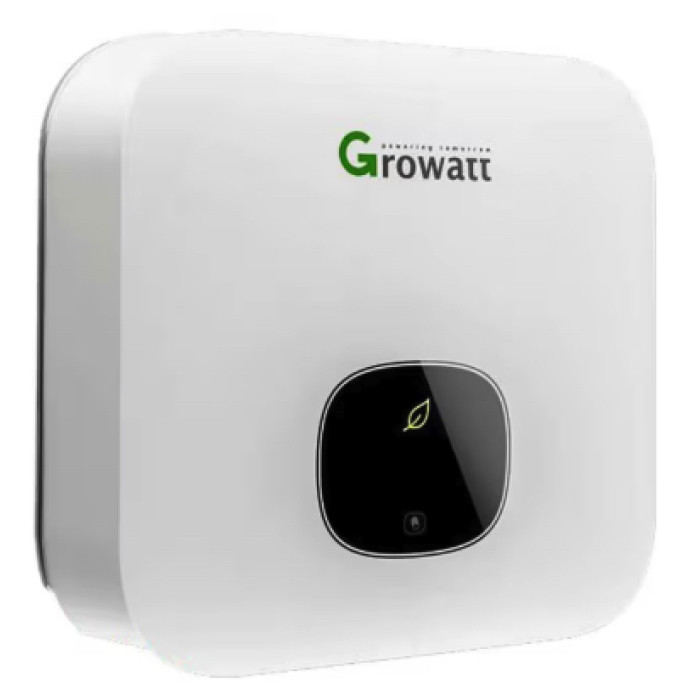

[MIN3000TL-X] Growatt 3kW 1 phases on-grid inverter

3kW 1 phases on-grid inverter
Max. recommended PV power (for module STC) 4200W
Max. DC voltage 500V
Start voltage 100V
Nominal voltage 360V
MPP voltage range 80V-500V
No. of MPP trackers 2
No. of PV strings per MPP tracker 1
Max. input current per MPP tracker 13.5A*
Max. short-circuit current per MPP tracke 16.9A
AC nominal power 3000W
Max. AC apparent power 3000VA
Nominal AC voltage（range*) 230V (180-280V)
AC grid frequency（range*）50/60 Hz (45-55Hz/55-65 Hz)
Max. output current 13.6A
Adjustable power factor 0.8leading…0.8lagging
THDi <3%
AC grid connection type Single phase
Efficiency
Max.efficiency 98.2%
European efficiency 97.1%
MPPT efficiency 99.9%
Protection Devices
DC reverse polarity protection /Yes
DC switch  /Yes
AC/DC surge protection Type III / Type II
Insulation resistance monitoring  /Yes
AC short-circuit protection  /Yes
Ground fault monitoring  /Yes
Grid monitoring  /Yes
Anti-islanding protection  /Yes
Residual-current monitoring unit  /Yes
AFCI protection  Optional
General Data
Dimensions (W / H / D) 375/350/160mm
Weight 10.8kg
Operating temperature range –25°C ... +60°C
Noise emission (typical) ≤35 dB(A)
Nighttime power consumption < 1W
Topology Transformerless
Cooling Natural convection
Protection degree IP65
Relative humidity 0-100%
Altitude 4000m
DC connection H4/MC4(Optional)
AC connection Connector
Display OLED+LED/WIFI+APP
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN Yes/Yes/Optional/Optional/Optional /Optional
Warranty: 5 years / 10 years Yes /Optional
