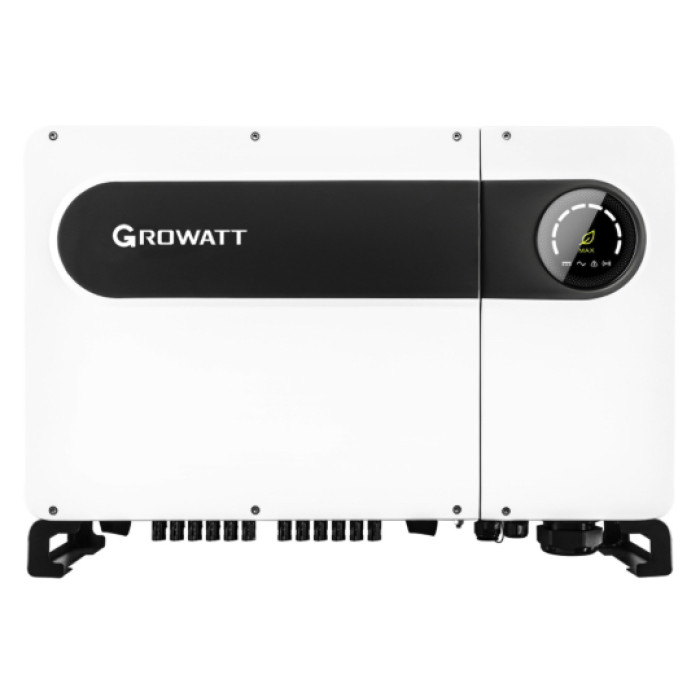

[MAX80KTL3 LV] Growatt 80kW 3 phases on-grid inverter

80kW 3 phases on-grid inverter
Max. recommended PV power (for module STC) 120000W
Max. DC voltage 1100V
Start voltage 250V
Nominal voltage 600V
MPPT voltage range 200V-1000V
No. of MPP trackers 7
No. of PV strings per MPP tracker 2
Max. input current per MPP tracker 26A
Max. short-circuit current per MPP tracker 32A
Output data (AC)
AC nominal power 80000W
Max. AC apparent power 88800VA
Nominal AC voltage (range*) 220V/380V, 230V/400V (340-440V)
AC grid frequency (range*) 50/60 Hz (45-55Hz/55-65 Hz)
Max. output current 128.8A
Adjustable power factor 0.8leading…0.8lagging
THDi <3%
AC grid connection type 3W+N+PE
Efficiency
MAX. efficiency 99%
European efficiency 98.5%
MPPT efficiency 99.9%
Protection devices
DC reverse polarity protection /Yes
DC Switch /Yes
AC/DC surge protection Type II / Type II
Insulation resistance monitoring /Yes
AC short-circuit protection /Yes
Ground fault monitoring /Yes
Grid monitoring /Yes
Anti-islanding protection /Yes
Residual-current monitoring unit /Yes
String monitoring /Yes
AFCI protection Optional
General data
Dimensions (W / H / D) 860/600/300mm
Weight 86kg
Operating temperature range –25°C ... +60°C
Self-consumption <1W
Topology Transformerless
Cooling Smart air cooling
Protection degree IP65
Relative humidity 0-100%
Altitude 4000m
DC connection H4/MC4(Optional)
AC connection Cable gland+OT terminal
Display  LED/WIFI+APP
Interfaces: RS485 / USB /WiFi/ RF/GPRS Yes/Yes /Optional/Optional/Optional
Warranty: 5 years / 10 years Yes/Optional
