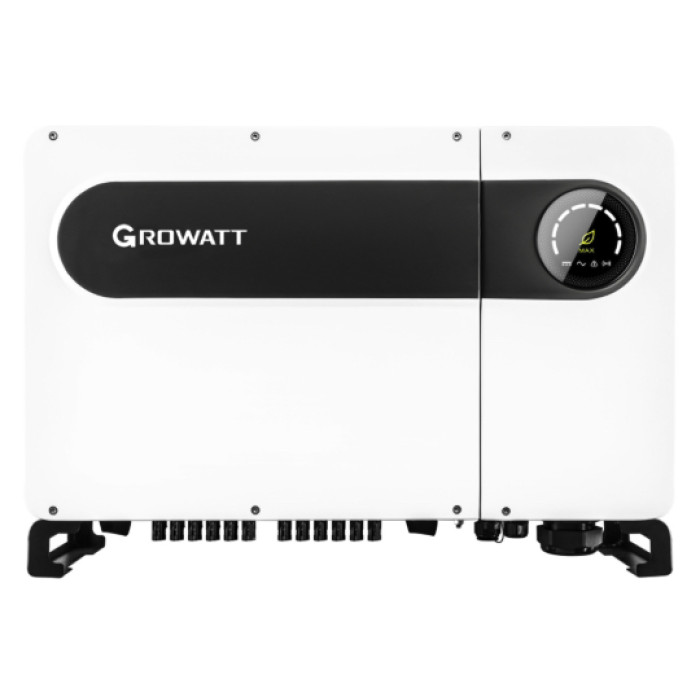

[MAX125KTL3 LV] Growatt 125kW 3 phases on-grid inverter

125kW 3 phases on-grid inverter
Max. DC voltage 1100V
Start voltage 195V
Nominal voltage 600V
MPP voltage range 180V-1000V
o. of MPP trackers 10
No. of PV strings per MPP tracker 2
Max. input current per MPP tracker 32A
Max. short-circuit current per MPP tracker 40A
Output data (AC)
AC nominal power 125000W
Max. AC apparent power 137500VA
Nominal AC voltage (range*) 220V/380V, 230V/400V (340-440V)
AC grid frequency (range*) 50/60 Hz(45~55Hz/55-65 Hz)
Max. output current This email address is being protected from spambots. You need JavaScript enabled to view it.@380V
Adjustable power factor 0.8leading ...0.8lagging
THDi <3%
AC grid connection type 3W/N/PE
Efficiency
MAX. efficiency 98.8%
European efficiency 98.5%
MPPT efficiency 99.9%
rotection devices
DC reverse polarity protection /Yes
DC Switch /Yes
AC/DC surge protection Type II / Type II
Insulation resistance monitoring /Yes
AC short-circuit protection /Yes
Ground fault monitoring /Yes
String detection /Yes
Anti PID function Optional
Arc fault detection (AFCI) Optional
General data
Dimensions (W / H / D) 970/640/345mm
Weight 84kg
Operating temperature range –30°C ... +60°C
Nighttime power consumption <1W
Topology Transformerless
Cooling Smart air cooling
Protection degree IP66
Relative humidity 0-100%
Altitude 4000m
DC connection H4/MC4 (Max.6mm²)
AC connection OT Terminal (Max. 240mm²)
Display  LED/WIFI+APP
Interfaces: RS485 / USB /PLC/GPRS/4G/WiFi Yes/Yes/Optional/Optional/Optional/Optional
Warranty: 5 years / 10 years Yes/Optional
