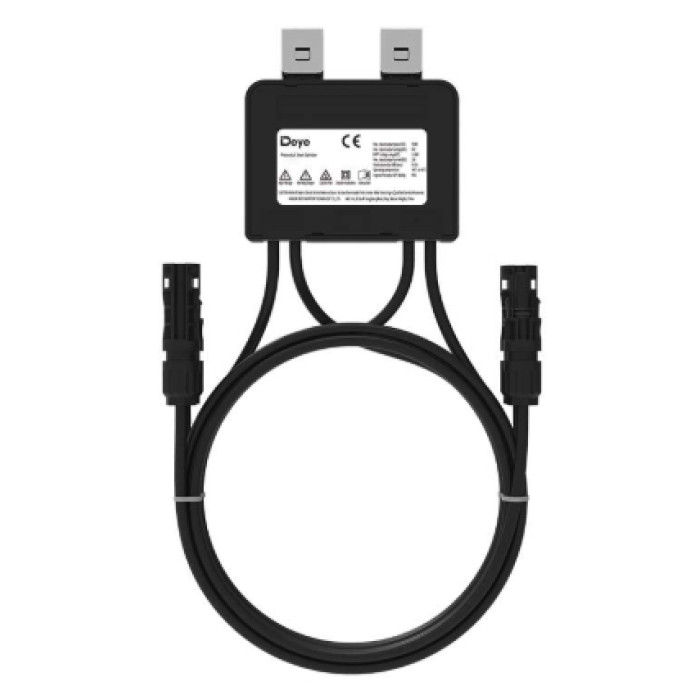

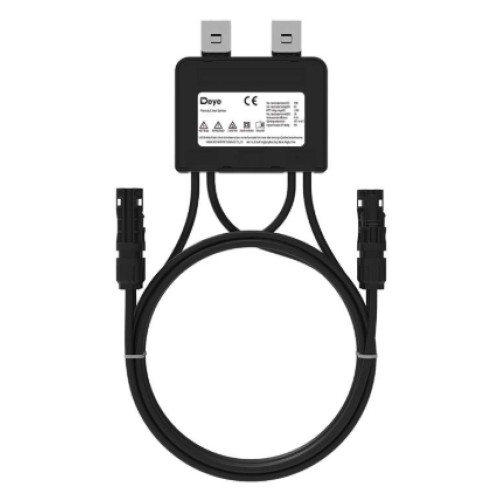

[SUN-XL02-B] Deye 700W/80V/15A/PLC Monitoring Rapid shutdown function
![[SUN-XL02-B] Deye 700W/80V/15A/PLC Monitoring Rapid shutdown function](/media/com_eshop/products/resized/SUN-XL02-B-700x700.jpg "[SUN-XL02-B] Deye 700W/80V/15A/PLC Monitoring Rapid shutdown function")
MANUFACTURER:
Deye
P/N :
SUN-XL02-B
SUN-XL02-B
Project Parameter
Maximum input power(W) 700W
Maximum input voltage(V) 80V
MPPT voltage range (V) 12-80V
Deye 10Y:
การรับประกันสินค้า 10 ปี
700W/80V/15A/PLC Monitoring Rapid shutdown function
Project Parameter
Maximum input power(W) 700W
Maximum input voltage(V) 80V
MPPT voltage range (V) 12-80V
Maximum input current (A) 15A
Peak conversion efficiency 99.5%
Installation specifications dimensions(mm) 105x105x22mm
Weight (g) 660g
Cable 4.0mm² input 70cm output 100cm
Connector MC4 Or Compatible with MC4
Operating temperature range -40℃~ +85℃
Level of protection IP68
Product certification CE
Communication mode PLC
