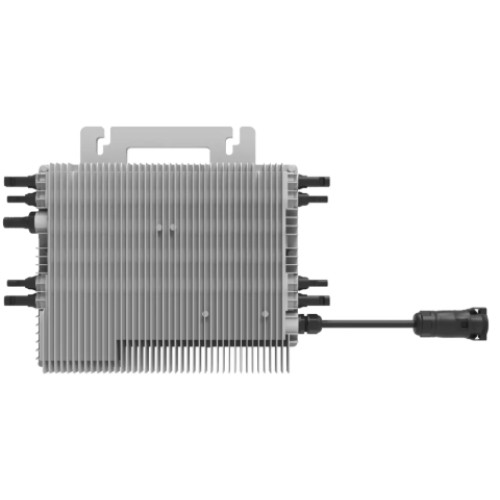

[SUN-M225G4 -EU-Q0-I] Deye 1Phase 2.2kw

1Phase 2.2kw
Max. PV Input Power (W) 210-790(4 Piece)
Max. PV Input Voltage (V) 60
Start-up Voltage (V) 20
MPPT Voltage Range (V) 25-55
Rated PV Input Voltage (V) 42.5
Max. Input Short-Circuit Current (A) 27+27+27+27
Max. Operating PV Input Current(A) 18+18+18+18
No. of MPP Trackers/No. of String per MPP Tracker 4/1
Rated AC Output Active Power(W) 2250
Max.AC Output Apparent Power(VA) 2250
Rated AC output current (A) 10.3/9.8
Max.AC Output Current(A) 10.3/9.8
Rated output voltage/range (V) 220/230 0.85Un-1.1Un
Grid Connection Form L/N/PE
Rated Output Grid Frequency/range(Hz) 50/45-55, 60/55-65
Max. unit per branch 3
Power Factor Adjustment Range 0.9 leading to 0.9 lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 96.5%
Euro Efficiency 96.0%
MPPT Efficiency >99%
Equipment Protection
DC Polarity Reverse Connection Protection /Yes
AC Output Overcurrent Protection /Yes
AC Output Overvoltage Protection /Yes
AC Output Short Circuit Protection /Yes
Thermal Protection /Yes
Insulation Impedance Detection /Yes
Anti-islanding Protection /Yes
Surge Protection Level TYPE II(AC)
Interface
Communication Interface WiFi
General Data
Operating Temperature Range (°C)-40 to +65℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude (m) 2000m
Noise (dB) ≤25
Ingress Protection(IP) Rating IP 67
Inverter Topology Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet Size（W*H*Dmm) 358×255.5×36.5 (Excluding Connectors and Brackets)
Weight (kg) 5.2
Warranty  10 Years
Type Of Cooling natural cooling
Grid Regulation IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,G98,VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
