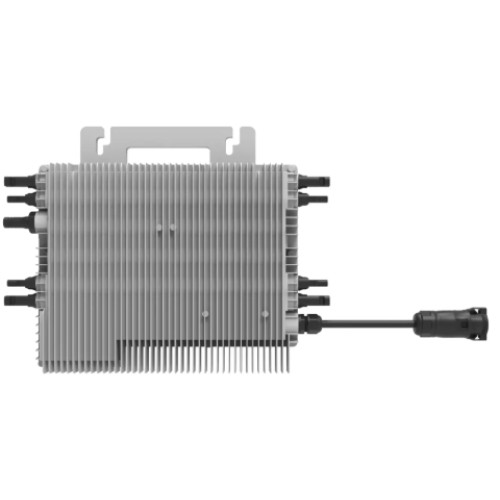

[SUN-M200G4-EU-Q0-I] Deye 1Phase 2kw

1Phase 2kw
Max. PV Input Power (W) 210-700 (4 Pieces)
Max. PV Input Voltage (V) 60
Start-up Voltage (V) 20
MPPT Voltage Range (V) 25-55
Rated PV Input Voltage (V) 42.5
Max. Operating PV Input Current (A) 18+18+18+18
Max. Input Short Circuit Current (A) 27+27+27+27
AC Output Side
Rated AC Output Active Power (W) 2000
Rated AC Output Apparent Power (VA) 2000
Max. AC Output Current (A) 9.1/8.7
Rated Output Current (A) 9.1/8.7
Rated Output Voltage/Range (V) 220/230 0.85Un-1.1Un
Grid Connection Form L/N/PE
Rated Output Grid Frequency/Range(Hz) 50/45-55,60/55-65
Max. Unit per Branch 3
Power Factor Adjustment Range 0.9 leading-0.9 lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%In
Efficiency
Max. Efficiency 96.5%
Euro Efficiency 96.0%
MPPT Efficiency >99%
Equipment Protection
DC Reverse Polarity Protection /Yes
AC Output Overcurrent Protection /Yes
AC Output Overvoltage Protection /Yes
AC Output Short Circuit Protection /Yes
Thermal Protection /Yes
Insulation Impedance Detection /Yes
Anti-islanding Protection /Yes
Surge Protection Level TYPE III(AC)
General Data
Operating Temperature Range (°C) -40 to +65°C, >45°C Derating
Permissible Ambient Humidity 0-100%
Permissible Altitude (m) 2000m
Noise (dB) ≤25
Ingress Protection(IP) Rating IP 67
Inverter Topology Isolated
Over Voltage Category OVC II(DC), OVC III(AC)
Communication Wi-Fi
Cabinet Size (W×H×D mm) (Excluding Connectors and Brackets) 311×250.5×36.5
Weight (kg) 5.1
Warranty 10 Years
Type of Cooling Natural Cooling
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, G99, VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
