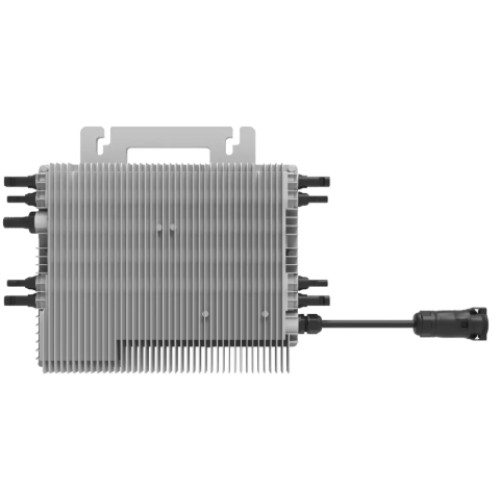

[SUN-M160G4 -EU-Q0-I] Deye 1Phase 1.6kw

1Phase 1.6kw
Max. PV Input Power (W) 210-560(4 Pieces)
Max. PV Input Voltage (V) 60
Start-up Voltage (V) 20
MPPT Voltage Range (V) 25-55
Rated PV Input Voltage (V) 42.5
Max. Operating PV Input Current (A) 18+18+18+18
Max. Input Short Circuit Current (A) 27+27+27+27
No. of MPP Trackers/No. of String per MPP Tracker 4/1
AC Output Side
Rated AC Output Active Power (W) 1600
Rated AC Output Apparent Power (VA) 1600
Max. AC Output Current (A) 7.3/7
Rated Output Current (A) 7.3/7
Rated Output Voltage/Range (V) 220/230 0.85Un-1.1Un
Grid Connection Form L/N/PE
Rated Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Max. Unit per Branch 4
Power Factor Adjustment Range 0.9 leading to 0.9 lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%In
Efficiency
Max. Efficiency 96.50%
Euro Efficiency 96
MPPT Efficiency >99%
Equipment Protection
DC Reverse Polarity Protection /Yes
AC Output Overcurrent Protection /Yes
AC Output Overvoltage Protection /Yes
AC Output Short Circuit Protection /Yes
Thermal Protection /Yes
Insulation Impedance Detection /Yes
Anti-islanding Protection /Yes
Surge Protection Level TYPE II(AC)
Interface
Communication Interface Wi-Fi
General Data
Operating Temperature Range (°C)-40 to +65℃
Permissible Ambient Humidity 0~100%
Permissible Altitude (m) 2000m
Noise (dB) ≤25
Ingress Protection(IP) Rating IP 67
Inverter Topology Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet Size（W*H*D）[mm] 311×250.5×36.5 (Excluding Connectors and Brackets)
Weight [kg] 4.95
Warranty [year] 10 Years
Type Of Cooling natural cooling
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
G98, VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
