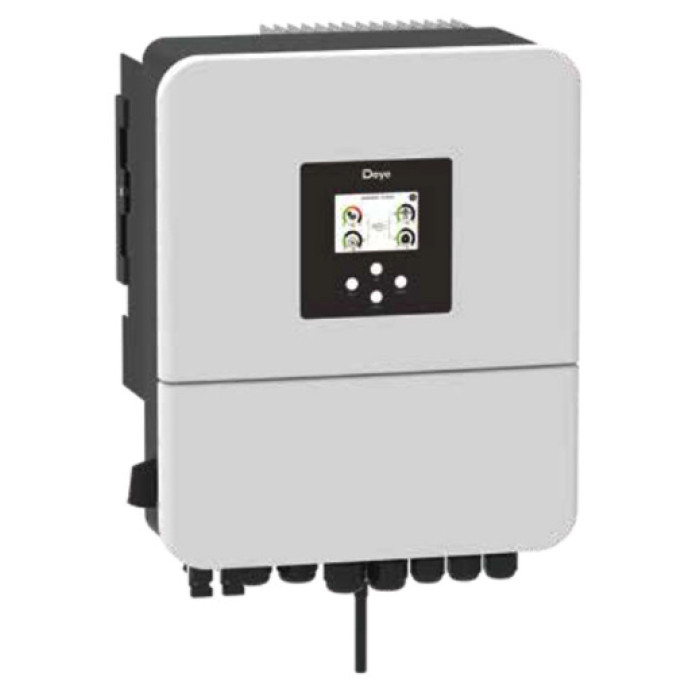

[SUN-6K-SG04LP1-EU-SM2] Deye 6KW/1phase, IP65 Battery 48V Free CT and Wifi

6KW/1phase, IP65 Battery 48V Free CT and Wifi
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range(V) 40-60
Max.Charging Current(A) 135
Max.Discharging Current(A) 135
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of battery input 1
PV String Input Data
Max. PV Access Power (W) 12000
Max PV Input Power（W）9600
Max PV Input Voltage（V）500
Start-up Voltage（V）125
MPPT Voltage Range（V）150-425
Rated PV Input Voltage(V) 370
Max Operating PV Input Current（A）18+18
Max Input Short-Circuit Current（A）27+27
No.of MPP Trackers/No.of String Per MPP Tracker 2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power（W）6000
Max AC Input/Output Apparent Power （VA）6600
Rated AC Input/Output Current（A）27.3/26.1
Max AC Input/Output Current（A）30/28.7
Max Continuous AC Passthrough (grid to load)（A）40
Peak Power (off-grid)（W）2 times of rated power,10s
Rated Input/Output Voltage/Range(V) 220V/230 0.85Un-1.1Un
Grid Connection Form L+N+PE
Rated Input/Output Grid Frequency/Range 50Hz/45Hz-55Hz     60Hz/55Hz-65Hz
Power Factor Adjustment Range 0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5%ln
Efficiency
Max Efficiency 97.6%
Euro Efficiency 96.5%
MPPT Efficiency >99%
Equipment Protection
Integrated
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection,
AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding
Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level TYPE II(DC),TYPE II(AC)
Communication Interface RS485/RS232/CAN
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range 40 to+60℃,＞45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude 2000m
Noise ＜30
Ingress Protection(IP) Rating IP65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet size（W*H*D）[mm] 376*470*241.5（Excluding connectors and brackets）
Weight[kg] 19
Warranty 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling natural cooling
Grid Regulation IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
