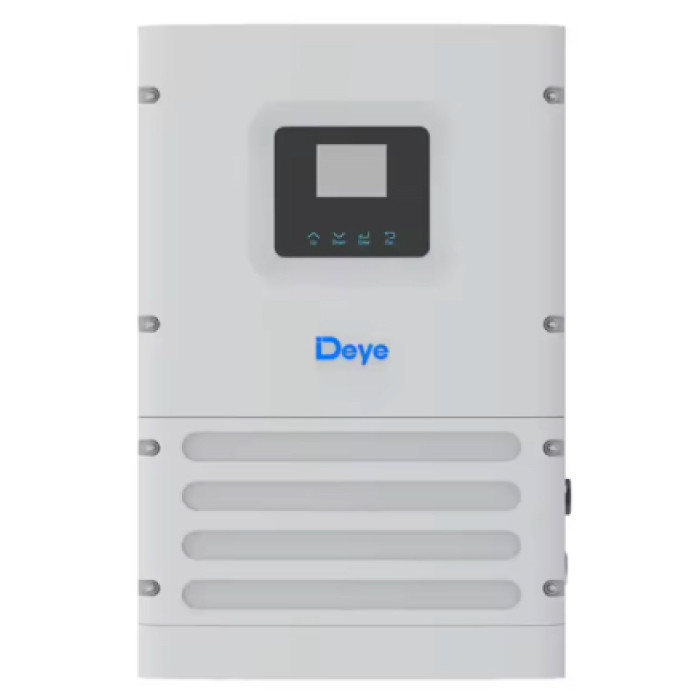

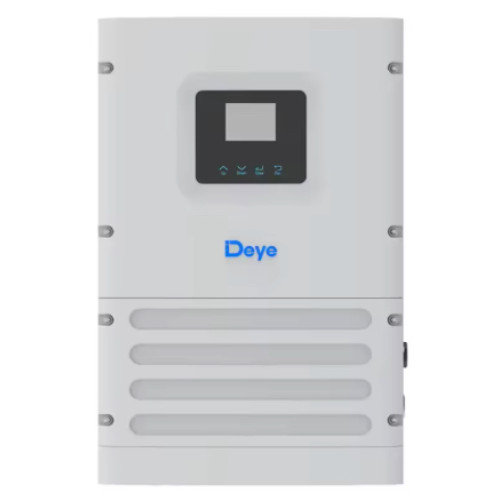

[SUN-6K-OG01LP1-EU-AM2] Deye 6KW/1phase, IP65

6KW/1phase, IP65

Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40-60
Max. Charging Current (A) 135
Max. Discharging Current (A) 135
Charging Strategy for Li-ion Battery Self-adaptation to BMS
Number of Battery Input 1
PV String Input Data
Max. PV Access Power (W) 12000
Max. PV Input Power (W) 9600
Max. PV Input Voltage (V) 500
Start-up Voltage (V) 125
MPPT Voltage Range (V) 150-425
Rated PV Input Voltage (V) 370
Max. Operating PV Input Current (A) 18+18
Max. Input Short-Circuit Current (A) 27+27
No. of MPP Trackers/
No. of Strings/MPP Tracker 2/1+1
Rated AC Output Power (VA/W) 6000
Max. AC Output Power (VA/W) 6000
Max. AC Output Current (A) 26.1
Peak Power (W) 2 times of rated power, 10s
Rated Output Voltage (V) 230
Output Type L+N+PE
Rated Output Frequency (Hz) 50/60
Output Voltage Waveform Pure Sine Wave
Total Current Harmonic Distortion THDI <3%
AC Input Data (Grid and Generator)
Max. Input Power to Battery (W) 6000
Rated Input Voltage Range (V) 230
Rated Input Frequency (Hz) 50/60
Grid Input Current (A) 35
Generator Input Current (A) 35
Efficiency
Max. Efficiency 97.6%
Euro Efficiency 96.5%
MPPT Efficiency >99%
Equipment Protection
Integrated DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI), DC Disconnect Switch, Insulation Impedance Detection
Surge Protection Level TYPE II(C), TYPE III(AC)
