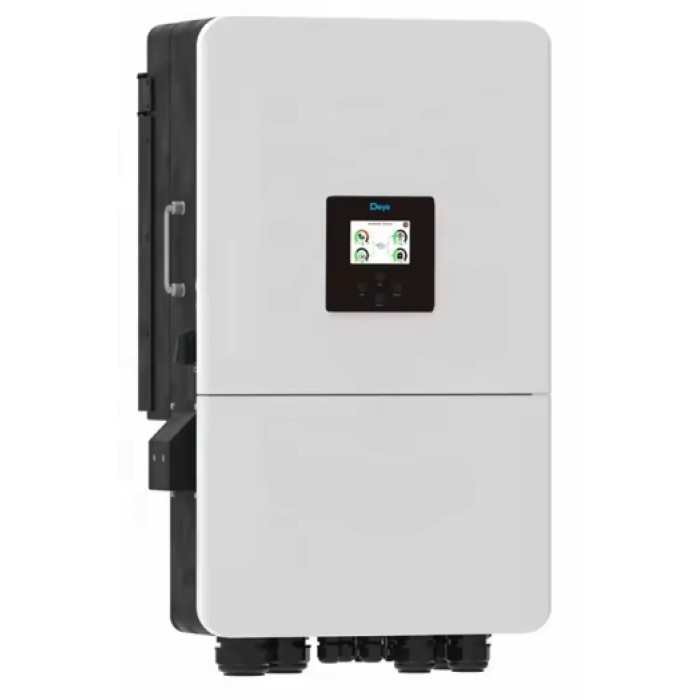

[SUN-5K-SG05LP3-EU-SM2] Deye 5KW/3phase, IP65 Battery 48V Free CT and Wifi

5KW/3phase, IP65 Battery 48V Free CT and Wifi
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40-60
Max. Charging Current (A) 120
Max. Discharging Current (A) 120
Charging Strategy forLi-ion Battery Self-adaption to BMS
Number of Battery Input 1
PV String Input Data
Max. PV Access Power (W) 10000
Max. PV Input Power (W) 8000
Max. PV Input Voltage (V) 800
Start-upVoltage (V) 160
MPPT Voltage Range (V) 200-650
Rated PV Input Voltage (V) 550
Max. Operating PV Input Current (A) 20+20
Max. Input Short-Circuit Current (A) 30+30
No. of MPP Trackers/No. of Strings MPP Tracker 2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W) 5000
Max. AC Input/Output Apparent Power (VA) 5500
Rated AC Input/Output Current (A) 7.6/7.3
Max. AC Input/Output Current (A) 8.4/8
Max. Continuous AC Passthrough (grid to load) (A) 45
Peak Power (off-grid) (W) 2 times of rated power, 10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V) 220/380V, 230/400V  0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Grid Connection Form 3L+N+PE
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5% In
Efficiency
Max. Efficiency 97.6%
Euro Efficiency 97.0%
MPPTEfficiency >99%
Equipment Protection
Integrated DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level TYPE II(DC),TYPE II(AC)
Interface
Communication Interface RS485/RS232/CAN
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (℃) -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0-100%
Permissible Altitude 3000m
Noise (dB) ≤55
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm) 386×660×250 (Excluding Connectors and Brackets)
Weight (kg) 35.2
Type of Cooling Intelligent Air Cooling
Warranty 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25,G98, G99,VDE-AR-N 4105
Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
