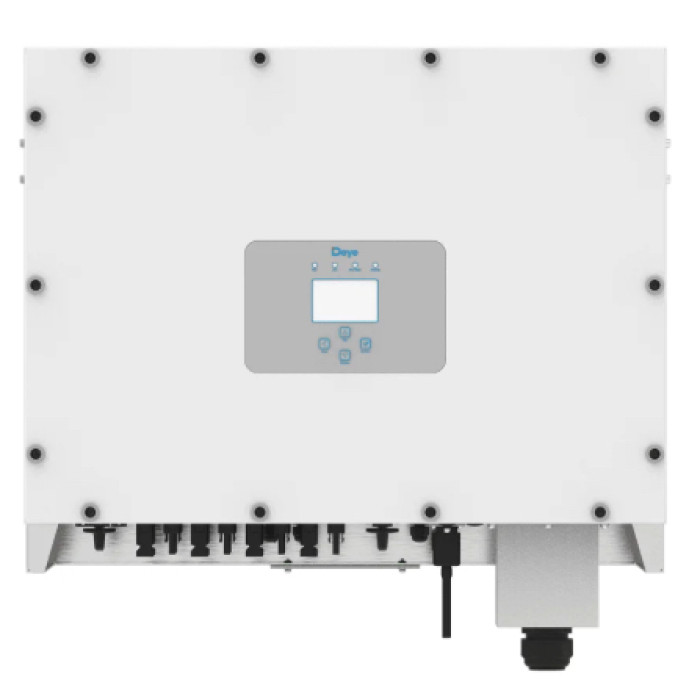

[SUN-120K-G01P3-EU-AM8] Deye 3Phase 380v/120kw Wifi/ DC Switch/LCD

3Phase 380v/120kw Wifi/ DC Switch/LCD
Max. PV Input Power(kW) 180
Max. PV Input Voltage(V) 1100
Start-up Voltage(V) 250
MPPT voltage range(V) 200-1000
Rated PV Input voltage(V) 600
Max. Input Short Circuit Current (A) 60+60+60+60+60+60+60+60
Max. Operating PV Input Current(A) 40+40+40+40+40+40+40+40
No. of MPP Trackers/No. of Strings per MPP Tracker 8/4+4+4+4+4+4+4+4
AC Output Side
Rated AC Output Active Power(kW) 120
Max. AC Output Apparent Power(kVA) 132
Rated AC output current (A) 181.9/174
Max. AC Output Current(A) 200/191.4
Rated output voltage/range (V) 220/380V, 230/400V 0.85Un-1.1Un
Grid Connection Form 3L+N+PE
Rated Output Grid Frequency/range(Hz) 50/45-55, 60/55-65
Power Factor Adjustment Range 0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 98.80%
Euro Efficiency 98.20%
MPPT Efficiency >99%
Equipment Protection
DC Reverse Polarity Protection /Yes
AC Output Overcurrent Protection /Yes
AC Output Overvoltage Protection /YesAC Output Short Circuit Protection /Yes
Thermal Protection /Yes
Insulation Impedance Detection /Yes
DC Component Monitoring /Yes
Arc Fault Circuit Interrupter (AFCI) Optional
Anti-islanding Protection /Yes
Residual Current Detection /Yes
Surge Protection Level TYPE II(DC),TYPE II(AC)
DC Switch /Yes
Interface
Communication Interface RS485/RS232
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C) ‘-25 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude (m) 4000m
Noise (dB) ≤ 65
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
abinet Size (WxHxD mm) 1006mm*516mm*325.5mm（Excluding connectors and brackets）
Weight [kg] 103
Warranty 5 years
Type Of Cooling Intelligent air cooling
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
