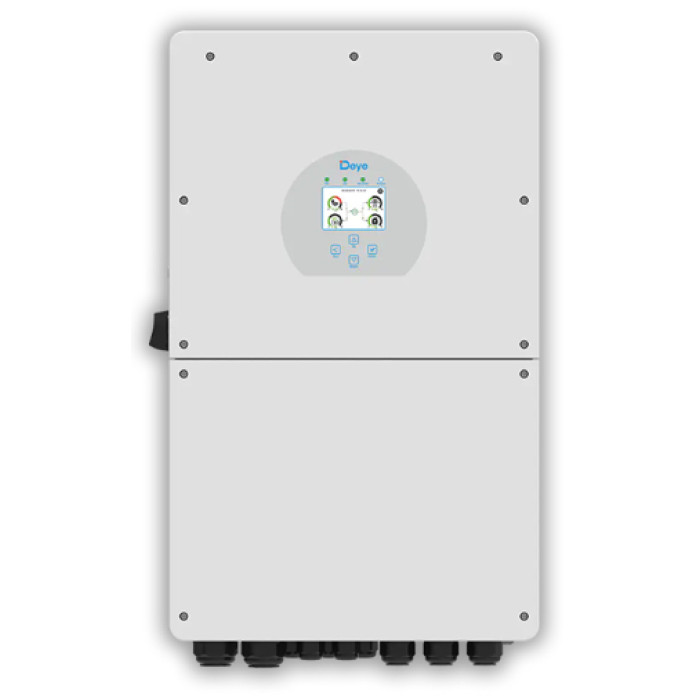

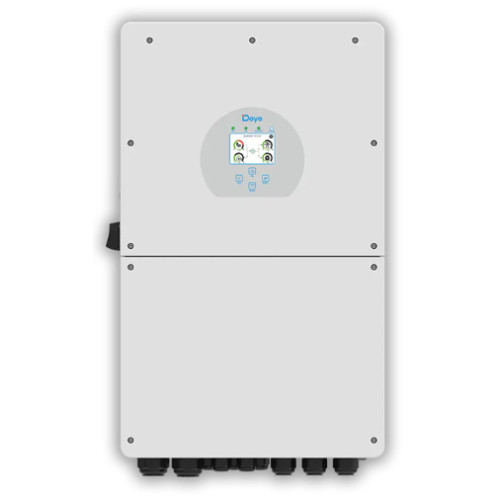

[SUN-10K-SG04LP3-EU] Deye 10KW/3phase, IP65 Battery 48V Free CT and Wifi

10KW/3phase, IP65 Battery 48V Free CT and Wifi
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range(V) 40-60
Max.Charging Current(A) 210
Max.Discharging Current(A) 210
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of battery input 1
PV String Input Data
Max. PV Access Power (W) 20000
Max PV Input Power（W）15000
MaxPV Input Voltage（V）800
Start-up Voltage（V）160
MPPT Voltage Range（V）200-650
Rated PV Input Voltage(V) 550
Max. Operating PV Input Current (A) 26+13Max. Input Short-Circuit Current (A) 34+17
No.of MPP Trackers/No.of String Per MPP Tracker 2/2+1
AC Input/Output Data
Rated AC Input/Output Active Power（W）10000
Max AC Input/Output Apparent Power （VA）11000
Peak Power (off-grid)（W) 2 times of rated power, 10s
Rated AC Input/Output Current（A）15.2/14.5
Max AC Input/Output Current（A）16.7/15.9
Max Continuous AC Passthrough (grid to load)（A）45
Rated Input/Output Voltage/Range(V) 220/380V，230/400V 0.85Un-1.1Un
Grid Connection Form 3L+N+PE
Rated Input/Output Grid Frequency/Range 50/45-55, 60/55-65
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5%ln
Efficiency
Max Efficiency 97.6%
Euro Efficiency 97.0%
MPPT Efficiency >99%
Equipment Protection
Integrated DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage
Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter
(optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection,Residual Current Detection
Surge Protection Level TYPE II(DC), TYPE II(AC)
Interface
Communication Interface RS485/RS232/CAN
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0-100%
Permissible Altitude 2000m
Noise ≤ 55 dB(A)
Ingress Protection(IP) Rating IP 65
nverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet size（W*H*D）[mm] 422×658×254（Excluding connectors and brackets）
Weight[kg] 38
Warranty 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling Intelligent air cooling
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98,G99, VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
