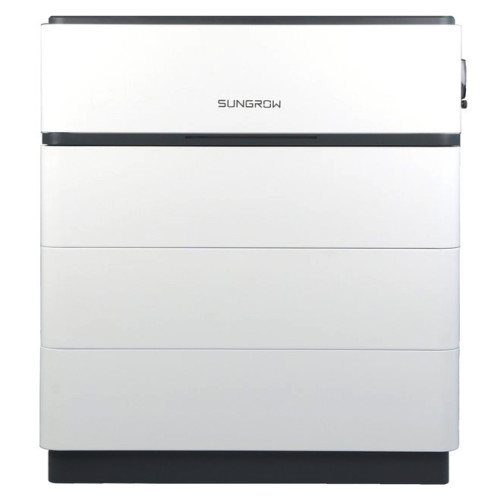

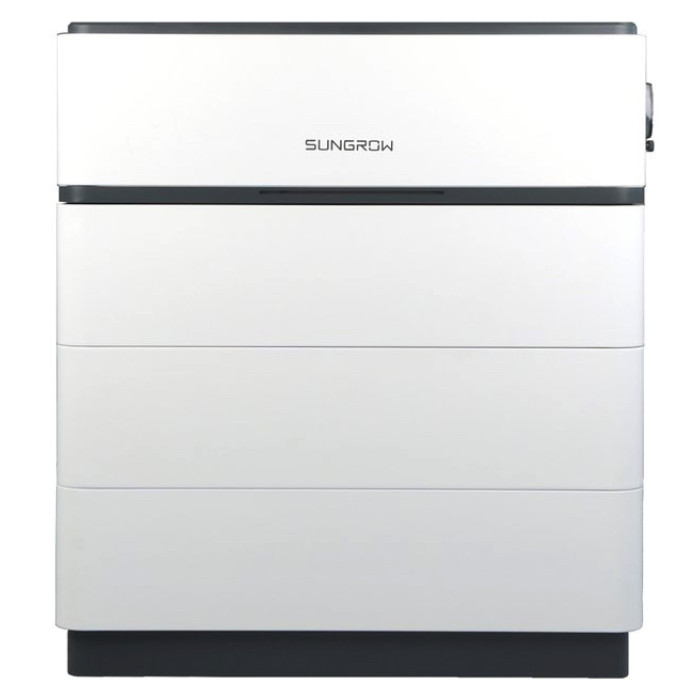

[SBH150] Sungrow Battery 3 modules 15.0 kWh Max 1 Phase / 3 Phase

Battery 3 modules 15.0 kWh Max 1 Phase / 3 Phase
Battery type LiFePO4 Prismatic Cell
Battery module 5.0 kWh , 45 kg
Energy (useable) * 15.0 kWh
Nominal voltage 211.2 V
Operating voltage 178.2V-240.9V
Max. charge / discharge current: continuous 50A
Depth of discharge Max. 100 % DOD ( settable )
Display SOC indicator , Status indicator
Communication interface CAN
Over/under voltage protection Yes
Over current protection Yes
Over/under temperature protection Yes
DC breaker Yes
Dimensions (W*H*D) 675 * 740 * 350 mm
Weight 151kg
Installation location Indoor / Outdoor
Mounting method Floor stand
Operating ambient temperature range Charge：0 ℃ - 50 ℃ Discharge：-20 ℃ - 50 ℃
Degree of protection IP55
Allowable relative humidity range 0 % - 95 % no condensing
Max. operating altitude Natural convection
Certificates CE, CEC, IEC 62619, IEC 62040, UN 38.3, VDE 2510-50, IEC 62477, IEC 63056
Warranty ** 10 Years
