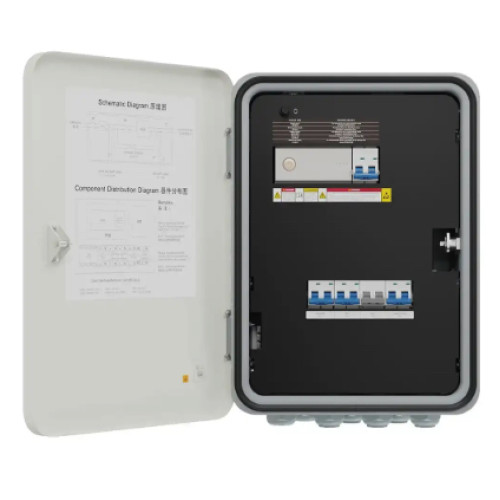

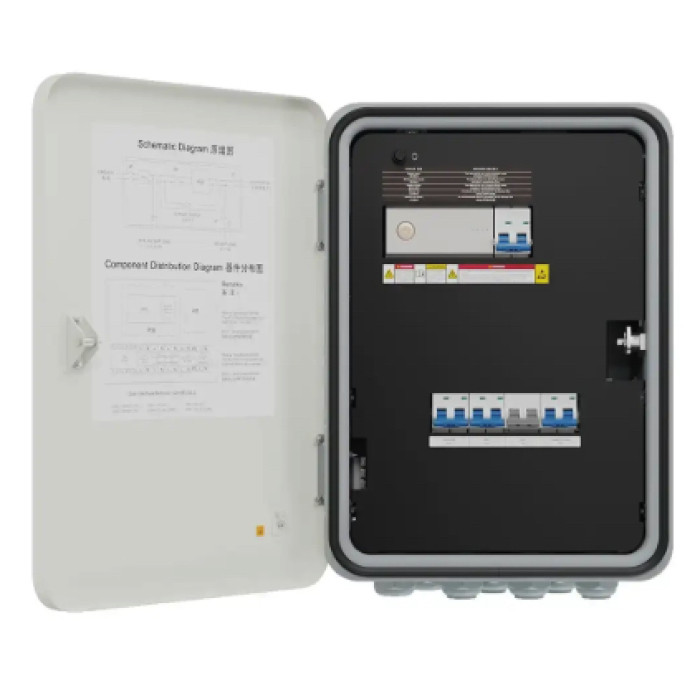

[SMART-G-63A-S0] Huawei Smart Backup 1 Phase

Smart Backup 1 Phase
AC Voltage (Nominal) 220/230/240V L/N+PE
Max. current (from Grid) 63A
Max. current (from Inverter) 60A
Max. current (to Backup Load) 63A
Max. current (to Non-BackupLoad) ¹ 63A
Self consumption 10W
Low-Voltage ride-through Supported
Switchover time ≤ 20ms (in Seamless Mode)
Bypass operation mode Manual
Dimensions (W x H x D) 485 mm × 150 mm × 355 mm
Weight ≤14kg
Power output 9.5 ~ 13.2V @ 100mA, ≤ 3m
LAN 10 / 100Mbps, ≤ 100m
WAN 10 / 100Mbps, ≤ 100m
WLAN AP Mode, 802.11b/g/n (2.412GHz ~ 2.484GHz)
RS485 9600 / 19200 / 115200bps,× 2, ≤ 50m
Digital input ×2, ≤ 20m
Digital output ×2, ≤ 20m
Current range ≤ 63 A
Voltage range 1P (L-N): 85 ~ 299 Vac
Energy accuracy ± 1%
Smart energy controllers up to 1
Smart chargers up to 2
Heat pump uo to up to 1²
Shelly device up to 20
Noise emission ≤ 29dBA
Cooling Natural Convection
Relative humidity range 5% ~ 95% RH (non condensing)
Max. operating altitude 4000m (derating over 2000m)
Degree of protection IP55
Operating temperature range 25°C ~ 50°C ³
Smart energy controller SUN2000-2-6KTL-L1 / SUN2000-8-10K-LC0
Smart charger SCharger-7KS-S0
Heat pump SG-ready
Shelly device Shelly Plus Plug S, Shelly Plus 2PM, Shelly Pro 2PM 4
