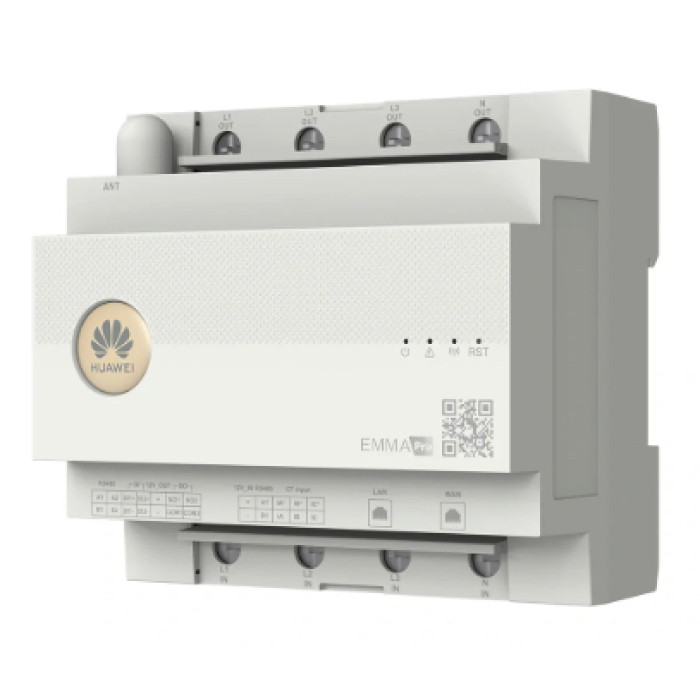

[EMMA-A02] Huawei Smart control 1 phase / 3 phase

Smart control 1 phase / 3 phase
Dimension (W × H × D) Dimension (W × H × D)
Mounting type DIN35 Rail
Height requirement of cabinet ≥ 47.5 mm
Weight 0.5kg
Power output 9.5 ~ 13.2 V @ 100 mA, ≤ 3 m
LAN 10 / 100 Mbps, ≤ 100 m
WAN 10 / 100 Mbps, ≤ 100 m
WLAN AP + STA, 802.11b/g/n (2.412 GHz ~ 2.484 GHz)
RS485 9600 / 19200 / 115200 bps,× 2, ≤ 50 m
Digital input × 2, ≤ 20 m
Digital output × 2, ≤ 20 m
LED LED Indicator × 3 RUN, ALM, COM
Button RST
APP Communication by WLAN for Commissioning
Current range Direct connection: ≤ 63 A, external CT¹ : > 63 A
Voltage range 1P (L-N): 85 ~ 299 Vac; 3P (L L): 148 ~ 520 Vac
Operating temperature range -25 °C~ +60 °C
Storage temperature range -40 °C~ +85 °C
Relative humidity range 5% ~ 95% RH (non condensing)
Max. operating altitude 4000 m (derating over 2000 m)
Degree of protection IP2X
Smart energy controller SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-8/10K-LC0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20/25KTL-M5, SUN2000-12/15/17/20/25K-MB0, SUN2000-5/6/8/10/12K-MAP0, SUN5000-8/12K-MAP0, SUN5000-17/25K-MB0
Smart charger SCharger-7KS/22KT-S0
Heat pump SG-ready
Shelly device Shelly Plus Plug S, Shelly Plus 2PM, Shelly Pro 2PM³
Smart Scheduling⁴ model SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-8/10K-LC0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20/25KTL-M5, SUN2000-12/15/17/20/25K-MB0, SUN2000-5/6/8/10/12K-MAP0, SUN5000-8/12K-MAP0, SUN5000-17/25K-MB0+ LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1
