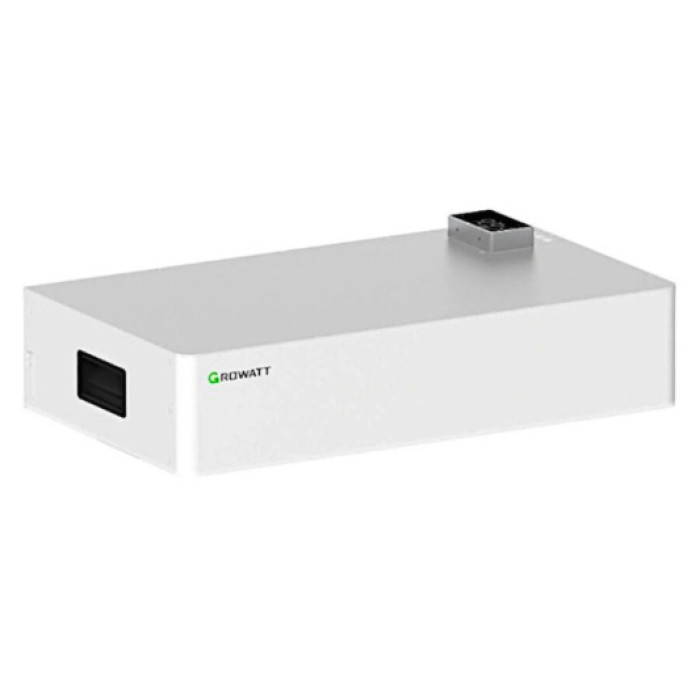

[AXE 5.0L-C1] Growatt Modular Battery
![[AXE 5.0L-C1] Growatt Modular Battery](/media/com_eshop/products/resized/AXE 5.0L-C1-700x700.jpg "[AXE 5.0L-C1] Growatt Modular Battery")
MANUFACTURER:
Growatt
P/N :
AXE 5.0L-C1
AXE 5.0L-C1
Battery module AXE 5.0L - C1 (5.0kWh, 51.2V, 40kg)
Number of modules 1
Energy capacity 5.0kWh
Nominal power* 1 3kW
Nominal charge/ discharge current 60A
Growatt 5Y:
การรับประกันสินค้า 5 ปี
Modular Battery
Battery module AXE 5.0L - C1 (5.0kWh, 51.2V, 40kg)
Number of modules 1
Energy capacity 5.0kWh
Nominal power* 1 3kW
Nominal charge/ discharge current 60A
Peak power 4.5kW@3s
Dimension (W/D/H) 650/350/165mm
Weight 42kg
Battery type Cobalt free lithium iron phosphate (LFP)
Nominal voltage 51.2V
Operating voltage range 48-57.6V
IP protection IP20
Installation Floor installation
Operation temperature 0~50°C
DoD 92%
Mult-cluster AXE battery system in parallel Max. 8 clusters ( Max. 400kWh )
BMS monitoring parameters SOC, system voltage, current, cell voltage, cell temperature, PCBA temperature measurement
Communication port CAN/RS485
Warranty(5/10 years) Yes/Opt
