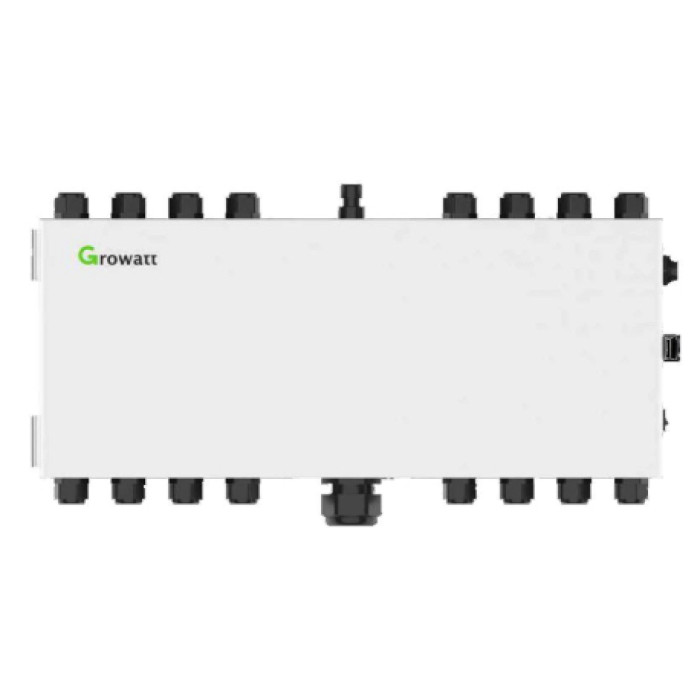

[ARK LV HUB-A1] Growatt HUB

HUB
Storage temperature: -40~80°C
CAN: Baud rate: 500K (terminal resistance:120Ω)
RS485: (Only for PCS) Baud rate:9600/115200
USB: For Firmware upgrade and monitor
Max current (45°C): 800A(each group 100A)
For Parallel connection of Lithium battery group
ARK LV HUB-A1 configures a maximum of 8 group batteries
Operating voltage range: 40-60Vdc
Communication interface: CAN/RS485
System Consumption: <2W
Size: (W60 x D25 x H14)cm
Environmental Protection Rating: IP20
Weight: 8Kg
Warranty: 15 years
Working temperature: -20~60°C
