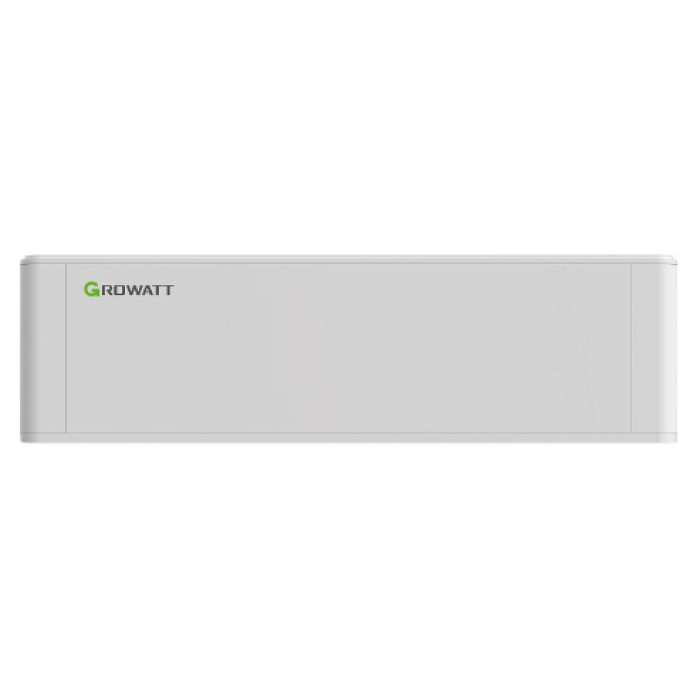

[ARK-2.5L A1] Growatt Battery
ARK-2.5L A1
Battery module ARK 2.5L-A1 (2.56kWh, 51.2V, 28kg)
Number of modules 1
Energy capacity 2.56kWh
Usable capacity 2.30 kWh
Standard charge/ discharge power*1 1.25kW
Standard charge/ discharge current 25A
Battery
Battery module ARK 2.5L-A1 (2.56kWh, 51.2V, 28kg)
Number of modules 1
Energy capacity 2.56kWh
Usable capacity 2.30 kWh
Standard charge/ discharge power*1 1.25kW
Standard charge/ discharge current 25A
Dimension (W/D/H) 650/260/185mm
Weight 28kg
Battery type Cobalt Free Lithium Iron Phosphate (LFP)
Nominal voltage 51.2V
Operating voltage rang 47.2-56.8V
IP protection IP65
Installation Wall-mounted or Floor installation * 2
Operation temperature -10~50°C* 3
BMS monitoring parameters SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
Communication port CAN
Warranty: 10 years Yes
