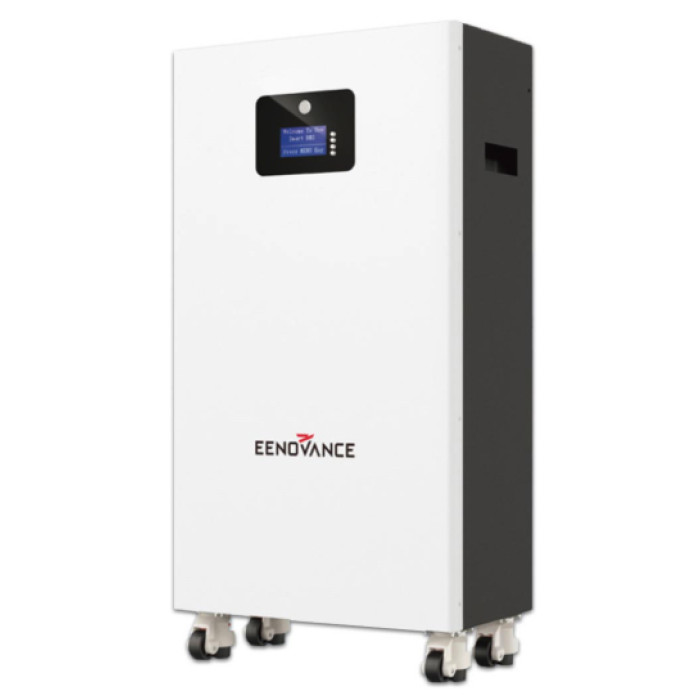

[MANA 5.12D] Eenovance 51.2V/5.12KWH 44.8V~56.16V Max 15 batteries in Parallel

51.2V/5.12KWH 44.8V~56.16V Max 15 batteries in Parallel
Technical Specification MANA 5.12-D
Cell technology LFP (LiFePO4)
Battery usable energy 5.324 kWh
Nominal voltage 51.2V
Operating voltage 44.8-56.16V
Max. Charge and discharge current 50A/100A
Cycle Life 6000 cycles
Display SOC status indicator, LED indicator, LCD display
Communication CAN / RS485 / RS232 / Wi-Fi
Dimension (W×D×H) 450×150×533 mm (17.7×5.9×21.0 inch)
Weight 46 kg (101.4 lbs)
Installation Floor stand or Wall mounted
Operating temperature Charge: 0 to 50°C (32 to 122°F) Discharge: -15 to 50°C (5 to 122°F)
Environmental humidity ≤95%RH (No condensation)
Ingress protection rating IP20
Warranty Period 10Years
Scalability Max. 15 batteries in parallel
Application ON Grid / ON Grid + Backup / Off grid
Compatible inverters Refer to compatible inverter list (Compatible with major PCS brands)
Compliance UN38.3 / IEC62619 / IEC61000 (More available upon request)
Parts MANA 5.12-D Battery
MANA 5.12-D Parallel cable
MANA 5.12-D to PCS cable
Warranty 10 years
