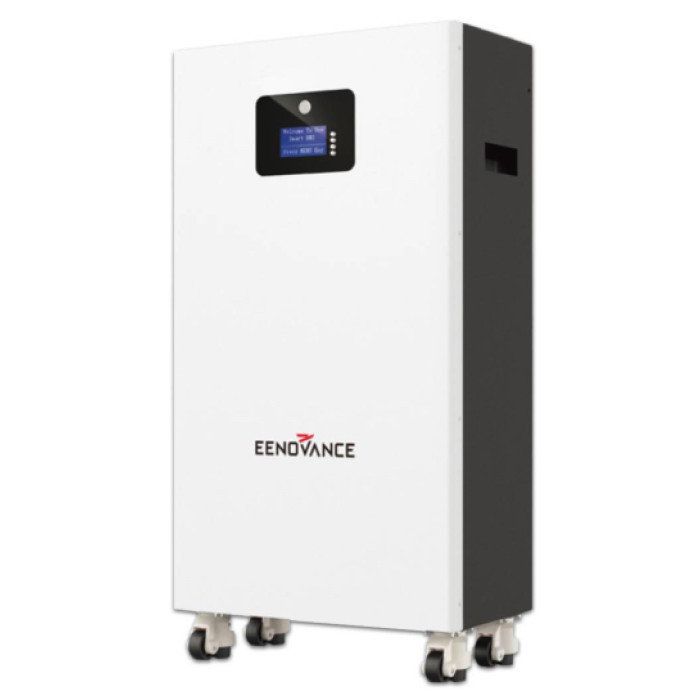

[MANA 16.07-D] Eenovance 51.2V/16.07KWH 44.8V~56.16V Max 15 batteries in Parallel

51.2V/16.07KWH 44.8V~56.16V Max 15 batteries in Parallel
Cell technology LFP (LiFePO4)
Battery usable energy 16.07kWh
Nominal voltage 51.2V
Operating voltage 44.8-56.16V
Max. Charge and discharge current 200A
Cycle Life 6000 cycles
Display SOC status indicator, LED indicator, LCD display
Communication CAN / RS485 / RS232 / Wi-Fi
Dimension (W×D×H) 450×245×790 mm (17.7×9.6×31.1 inch)
Weight 120 kg (264.55 lbs)
Installation Floor stand or Wall mounted
Operating temperature Charge: 0 to 50°C (32 to 122°F) Discharge: -15 to 50°C (5 to 122°F)
Environmental humidity ≤95%RH (No condensation)
Ingress protection rating IP20
Warranty Period 10Years
Scalability Max. 15 batteries in parallel
Application ON Grid / ON Grid + Backup / Off grid
Compatible inverters Refer to compatible inverter list (Compatible with major PCS brands)
Compliance UN38.3 / IEC62619 / IEC61000 (More available upon request)
Parts MANA 16-D Battery
MANA 16-D Parallel cable
MANA 16-D to PCS cable
Warranty 10 years
