MANUFACTURER: Dyness

P/N : Powerbox Pro

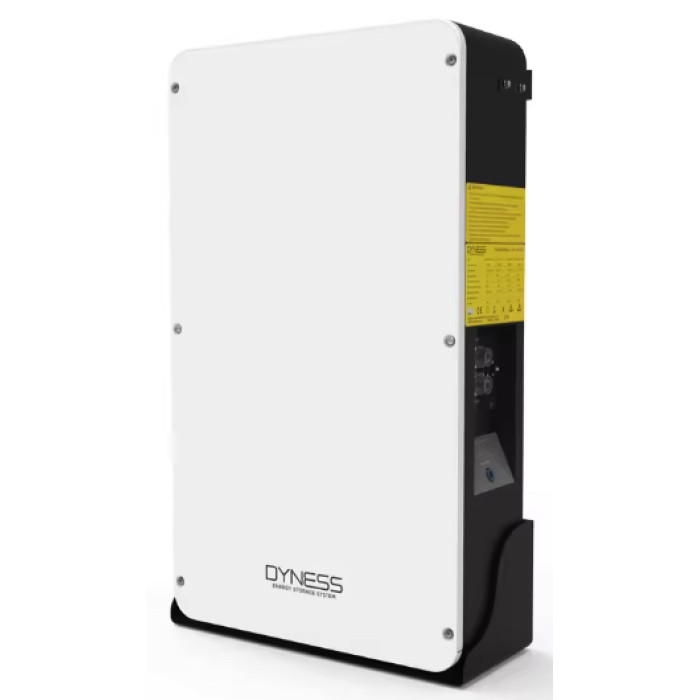

Powerbox Pro
Battery Type LiFePO4
Nominal Battery Energy 10.24kWh
Operating Voltage 44.8 ~ 57.6V
Nominal Voltage 51.2V
Nominal Capacity 200Ah
Nominal Power 5.12kW


Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่::

ฝ่ายขาย ADD LINE : @emthailand
Phone  095-675-8034

support2

    S gainfriends 2dbarcodes GW  เพิ่มเพื่อน

Dyness 10Y:

การรับประกันสินค้า 10 ปี

51.2V 200Ah Battery Lithium Lifepo4
Battery Type LiFePO4
Nominal Battery Energy 10.24kWh
Operating Voltage 44.8 ~ 57.6V
Nominal Voltage 51.2V
Nominal Capacity 200Ah
Nominal Power 5.12kW
Peak Power 10.24kW
Recomended Charge & Discharge C Rate 0.5C
Recommended Charge/Discharge Current 100A
Recommended Depth of Discharge (DOD) 90%
Net Weight 103kg
Dimension[W*D*H] 555*210*928mm
Ambient Temperature Range -10o C to 50o C
Heating Function Optional
Communication CAN/RS485/RS232
Cycle Life[1] ≥6000 Cycles
Protection Level IP65
Expansion Up to 5 units in parallel
Color White
Alarms Overcharge/Over-discharge/Overcurrent /Overtemperature/Short Circuit
Pros Can be used in both off-grid and hybrid setups, compact design, floor or wall-mounted
Certification & Safety Standard UN38.3/CE-EMC/IEC62619/IEC62040 /IEC60730/UKCA/CEC Accredited
Compatible Inverters SMA/Victron/Ingeteam/Delios/Goodwe/Solis /Deye/SAJ/Voltronic/Sungrow etc.
