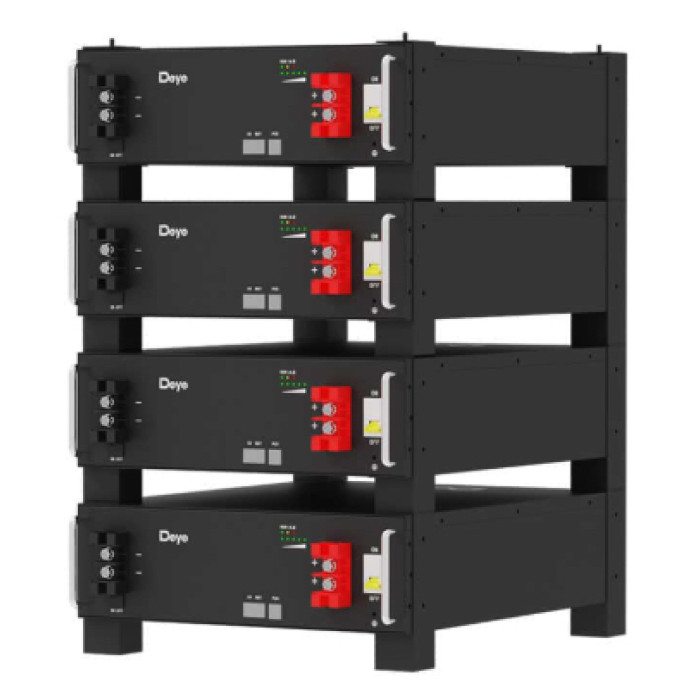

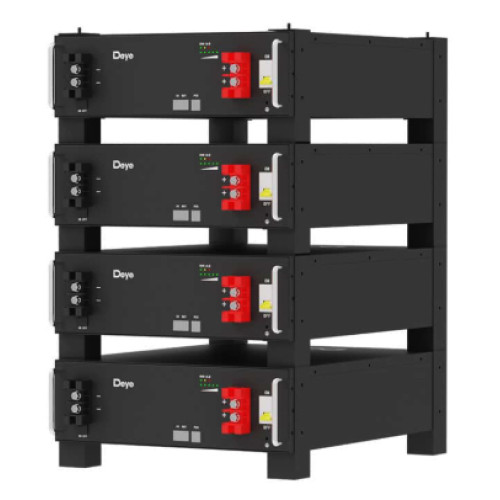

[SE-G5.1] Deye 51.2V/100AH/5.12KWH Rack Type
![[SE-G5.1] Deye 51.2V/100AH/5.12KWH Rack Type](/media/com_eshop/products/resized/SE-G5.1-700x700.jpg "[SE-G5.1] Deye 51.2V/100AH/5.12KWH Rack Type")
MANUFACTURER:
Deye
P/N :
SE-G5.1
SE-G5.1
The Deye SE-G5.1 is a high-performance LiFePO4 battery designed for efficient energy storage, ideal for residential, commercial applications. Built with safety and scalability in mind, it delivers consistent power while supporting long-term use.
Deye 10Y:
การรับประกันสินค้า 10 ปี
51.2V/100AH/5.12KWH Rack Type
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Nominal Capacity 100Ah
Nominal Voltage 51.2V
Operating Voltage Range 44.8V-57.6V
Nominal Energy 5.12kWh
Cell Configuration 1P16S
Scalability Up to 64 units in parallel (327 kWh)
Max Charge Current 50 A (Continuous), 100 A (Peak for 10 sec)
Max Discharge Current 50 A (Continuous), 100 A (Peak for 10 sec)
Recommended Depth of Discharge 80% DoD
Dimensions (W x D x H) 440x540x133mm
Weight Approximately 44 kg
Master LED Indicator 5 LEDs (SOC indication from 20% to 100%)
Communication Ports CAN2.0, RS485
IP Rating IP20
Operating Temperature Charging: 0 to 55℃; Discharge: -20 to 55℃
Storage Temperature 0 to 35℃
Cycle Life ≥6000 cycles at 25℃ (0.2C charge/discharge, 80% DoD)
Warranty Period 5 years
Installation Methods Floor-mounted (stacked), wall-mounted, rack-mounted
