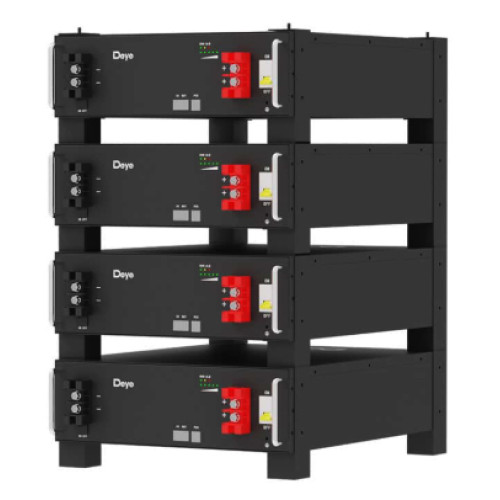

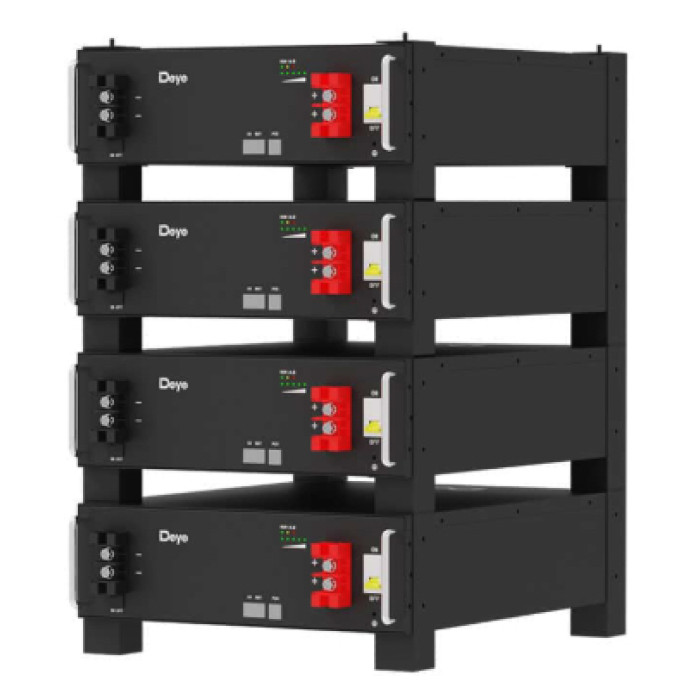

[SE-G10.2] Deye 51.2V/200AH/10.24KWH Rack Type
![[SE-G10.2] Deye 51.2V/200AH/10.24KWH Rack Type](/media/com_eshop/products/resized/SE-G10.2-700x700.jpg "[SE-G10.2] Deye 51.2V/200AH/10.24KWH Rack Type")
MANUFACTURER:
Deye
P/N :
SE-G10.2
SE-G10.2
Introducing the SE-G10.2 battery, powered by Lithium Iron Phosphate (LiFePO4) chemistry, designed to deliver outstanding performance and reliability.
Deye 10Y:
การรับประกันสินค้า 10 ปี
51.2V/200AH/10.24KWH Rack Type
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Nominal Capacity 200Ah
Nominal Voltage 51.2V
Operating Voltage Range 44.8 V – 57.6 V
Nominal Energy 10.24 kWh
Cell Configuration 2P16S
Max. Charge Current 100 A continuous, 200 A peak (10 sec)
Max. Discharge Current 100 A continuous, 200 A peak (10 sec)
Recommended Depth of Discharge 80% DoD
Dimensions (W x D x H) 710 mm (W) × 540 mm (D) × 133 mm (H)
Weight Approximately 85 kg
Cycle Life ≥6000 cycles (at 25℃ with 0.2C discharge and 80% DoD)
Warranty Period 5Years
Communication Port CAN2.0, RS485
IP Rating IP20
Operating Temperature Charging: 0℃ to 55℃, Discharge: -20℃ to 55℃
Storage Temperature 0℃ to 35℃
Relative Humidity Up to 95%
Altitude ≤2000 m
