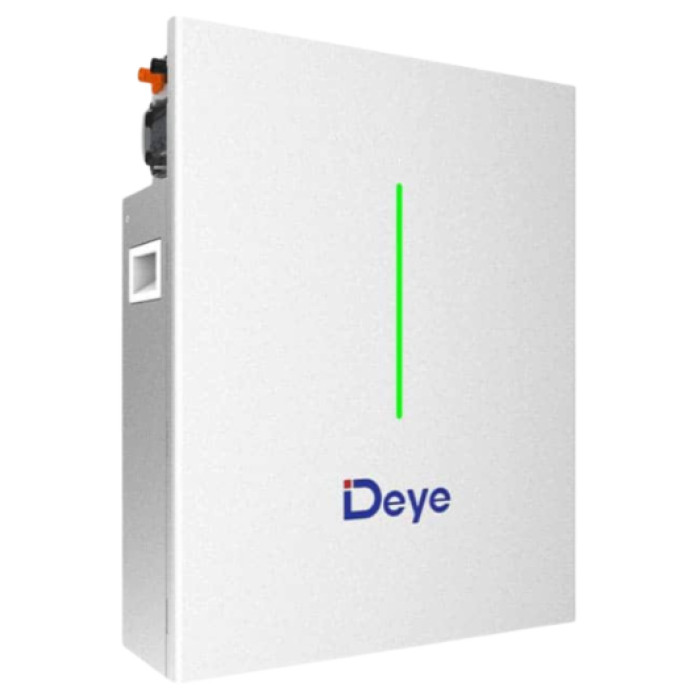

[RW-F10.6] Deye 51.2V/315AH/16KWH Wall Mounted

51.2V/315AH/16KWH Wall Mounted
Battery Chemistry LiFePO4
Built-in Circuit Breaker 125A 2P, 60Vdc
Capacity (Ah) 208
Scalability Max. 32 pcs pack (Max.340kWh) in parallel
Nominal Voltage (V) 51.2
Operating Voltage(V) 43.2 ~ 57.6
Nominal Energy (kWh) 10.64
Usable Energy (kWh) 9.58
Charge/Discharge Current (A)
Recommend Charge: 104 / Discharge: 104
Max. Charge: 200 / Discharge: 240
Peak(25℃) 300(2mins)
Recommend Depth of Discharge 90%
Dimension (W/H/D, mm) 600*750*200(Without hanging board)
Weight Approximate(kg) 99
Master LED Indicator LED(SOC:20%~SOC100% and working state)
IP Rating of Enclosure IP20
Operating Temperature Charge: 1～53℃ / Discharge: -20℃～53℃
Recommend Operating Temperature 15℃～35℃
Storage Temperature 0℃～35℃
Humidity 5%~95%
Altitude ≤3000m
Cycle Life ≥6000(25℃±2℃,0.5C/1C,90%DOD,70%EOL)
Installation Wall-Mounted, Floor-Mounted
Communication Port CAN2.0, RS485
Warranty Period 10years
Energy Throughput 32MWh(25℃, 0.5C/1C, 70%EOL)
Certification UN38.3, MSDS,CE,CB
